Switch Diagnosis
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel, turn the power on KDS/GDS.
- Select the vehicle model and then SMART KEY system.
- Select the "SMART KEY unit".

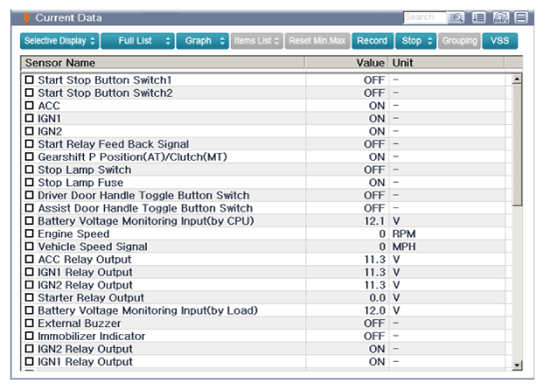

- After IG ON, select the "Current data".
- You can see the situation of each switch on scanner after connecting the "Current Data" process.
| Display | Description |
|---|---|
| FL Toggle SW | ON: Push button is ON in the driver door handle. |
| FR Toggle SW | ON: Push button is ON in the assist door handle. |
| Liftgate open SW | ON: Liftgate button is ON. |
| Gear P Position | ON: Shift lever is P position. |
| IGN 1 | ON: IGN switch is IG position. |
| ACC | ON: IGN switch is ACC position. |
| Brake SW | ON: Brake switch is ON. |
Communication Diagnosis With KDS/GDS (Self-Diagnosis)
- Communication diagnosis checks that the each linked components operates normal.
- Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.

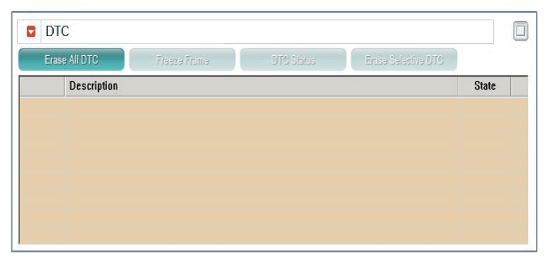

- After IG ON, select the "DTC".
