Liftgate Antenna

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer To Body - "Rear Transverse Trim")

  3. Remove the liftgate antenna (A) after loosening the mounting nuts and disconnecting the connector.

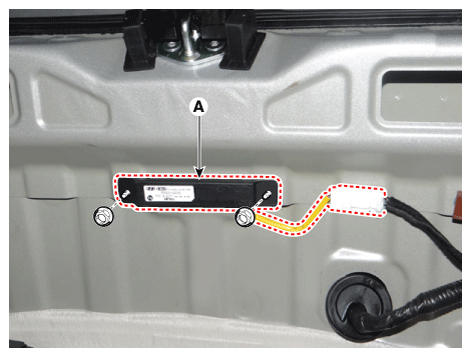

Fig 1: Removing Liftgate Antenna Mounting Nuts
G12335144Courtesy of KIA MOTORS AMERICA, INC.
