Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the front door trim.

   (Refer to Front Door - "FRONT DOOR TRIM ")

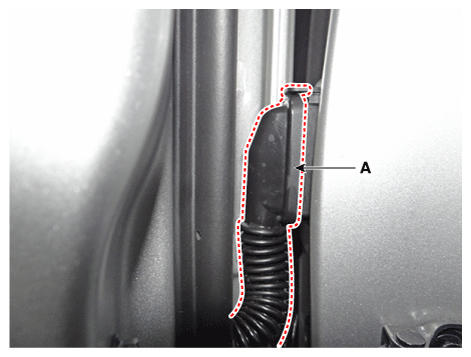

2. Disconnect the front door main connector (A).
   Fig 1: Locating Front Door Main Connector

   Courtesy of KIA MOTORS AMERICA, INC.

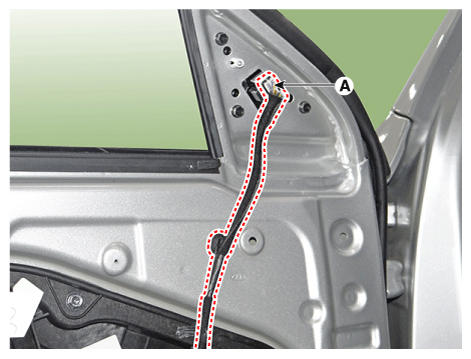

3. Disconnect the outside rear view mirror connector (A).
   Fig 2: Locating Outside Rear View Mirror Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Separate the rear door module (A) after loosening the mounting bolts.

   Tightening Torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

   Fig 3: Separating Rear Door Module

   Courtesy of KIA MOTORS AMERICA, INC.

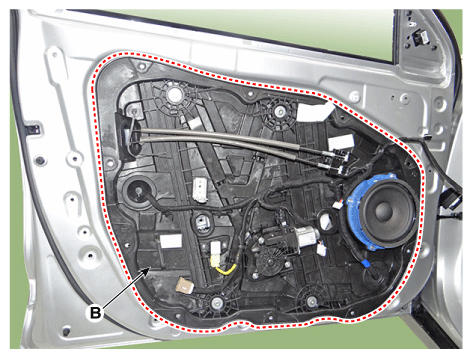

5. Remove the front door module (A) after disconnecting the front door latch connector (B).
   Fig 4: Locating Front Door Module

   Courtesy of KIA MOTORS AMERICA, INC.

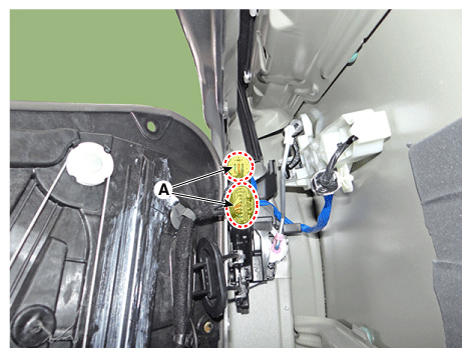

   Fig 5: Locating Front Door Latch Connector

   Courtesy of KIA MOTORS AMERICA, INC.

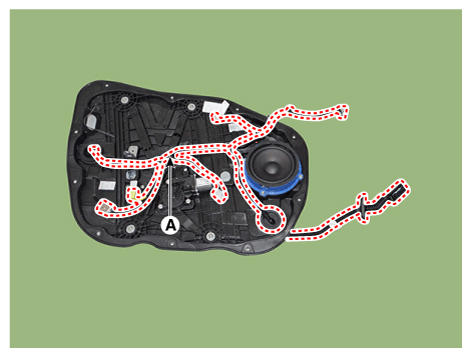

6. Disconnect the connectors and front door module wiring harness (A).
   Fig 6: Locating Connectors And Front Door Module Wiring Harness

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the front speaker.

   (Refer to Body Electrical System - "SPEAKERS ")

8. Remove the front power window motor.

   (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

9. Remove the side impact sensor.

   (Refer to Restraint - "SIDE IMPACT SENSOR ")

10. Install in the reverse order of removal.

Information

• Apply enough grease onto the whole parts.
• Make sure that connectors are connected properly and each rod is connected securely.
• Make sure that the door locks/unlocks and opens/closes properly.
