Hybrid Power Control Unit (HPCU) Tray

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hybrid power control unit.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")
Remove the hybrid power control unit tray (A) after loosening the mounting bolts.
Hybrid Power Control Unit (HPCU) Tray Mounting Bolt:

21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)

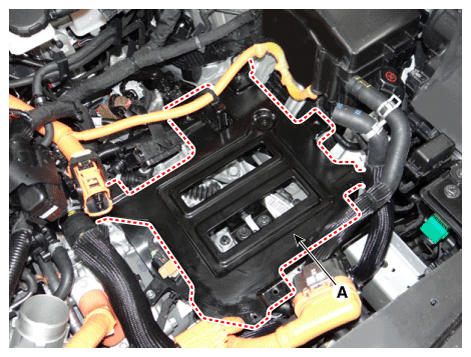

Fig 1: Removing Hybrid Power Control Unit Tray
Courtesy of KIA MOTORS AMERICA, INC.

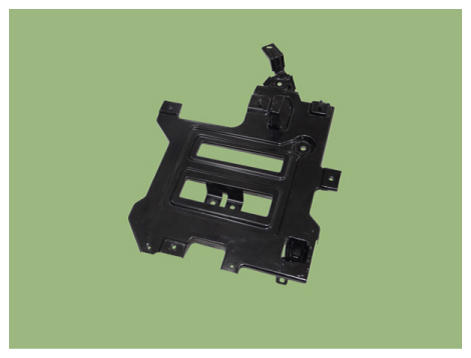

Fig 2: Hybrid Power Control Unit Tray
Courtesy of KIA MOTORS AMERICA, INC.
