Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery (-) cable.
CAUTION: Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
Remove the driver's seat.
(Refer to Body - "FRONT-SEAT ASSEMBLY ")
Remove the front door scuff trim.
(Refer to Body - "DOOR SCUFF TRIM ")
Remove the cowl side trim.
(Refer to Body - "COWL SIDE TRIM ")
It is removing the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

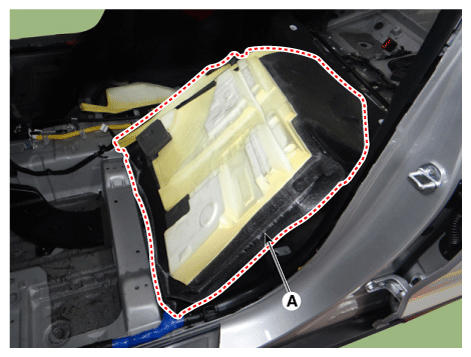

Fold the floor carpet (A) to backward.

Fig 1: Folding Floor Carpet To Backward
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clip and take off the rear heating ducts (A).

Fig 2: Removing Clip And Rear Heating Ducts
Courtesy of KIA MOTORS AMERICA, INC.

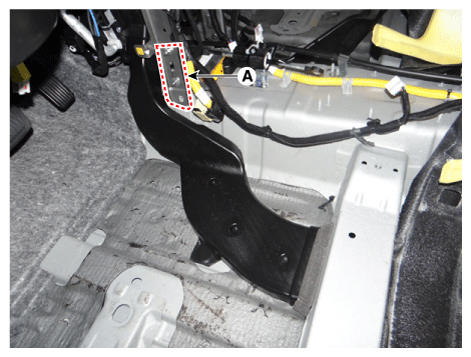

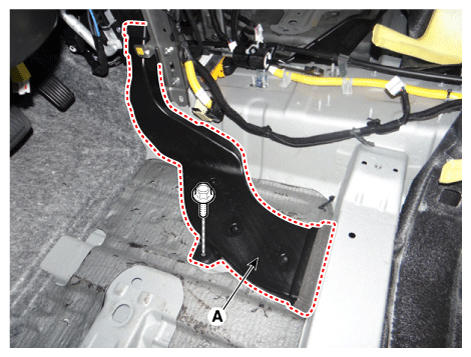

Remove the cowl cross bar and the bracket (A).

Fig 3: Removing Cowl Cross Bar And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

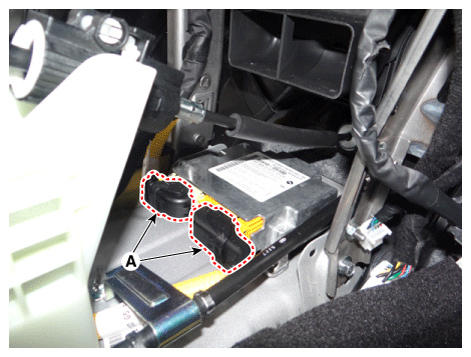

Pull the locking lever of the airbag system control module (SRSCM) connector and remove the connector (A).

Fig 4: Pulling Locking Lever Of Airbag System Control Module (SRSCM) Connector
Courtesy of KIA MOTORS AMERICA, INC.

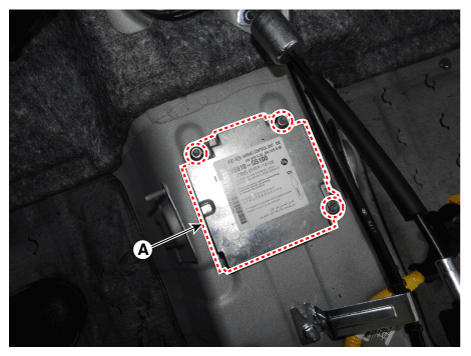

Unscrew the nuts and remove the airbag system control module (A).
Tightening Torque:

8.0 - 10.0N.m(0.8 - 1.0 kgf.m, 5.9 - 7.3 lb-ft)

Fig 5: Removing Airbag System Control Module
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: You must remove or install SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
