Section 236 (Smart Cruise Control System)
>>
Smart Cruise Control (SCC) Switch
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Smart Cruise Control (SCC) Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
[Trip + Cruise]

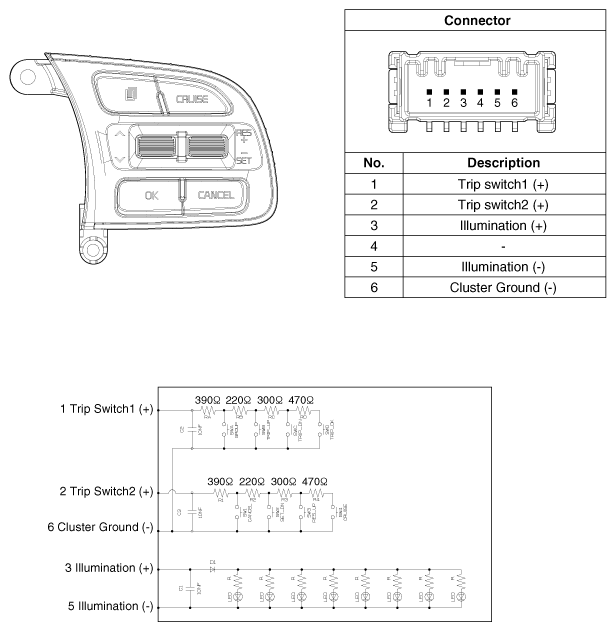

Fig 2: Smart Cruise Control (SCC) Switch Circuit Diagram And Connector End View (Trip + Cruise)
Courtesy of KIA MOTORS AMERICA, INC.
[Trip + Cruise + SCC]

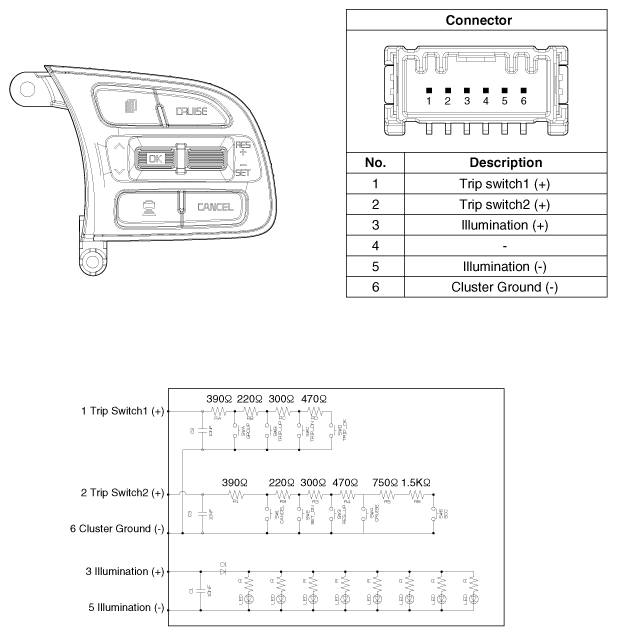

Fig 3: Smart Cruise Control (SCC) Switch Circuit Diagram And Connector End View (Trip + Cruise + SCC)
Courtesy of KIA MOTORS AMERICA, INC.
