Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat track mounting cover.
After loosening the mounting bolts, remove the front seat assembly (A).
Tightening torque:

34.3 - 53.9 N.m (3.5 - 5.5 kgf.m, 25.3 - 39.8 lb.ft)

Fig 1: Locating Front Seat Assembly With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the airbag connector (A), seat warmer & power seat switch connector (B), front seat belt buckle connector (C).
[Driver's]

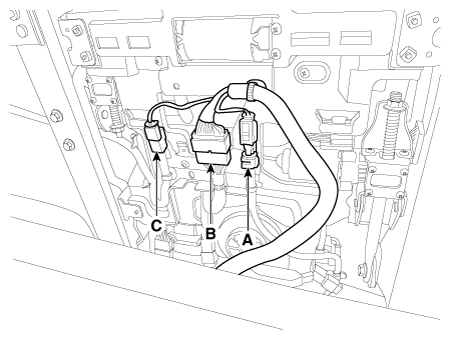

Fig 2: Locating Airbag Connector, Seat Warmer & Power Seat Switch Connector And Front Seat Belt Buckle Connector - Driver's
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

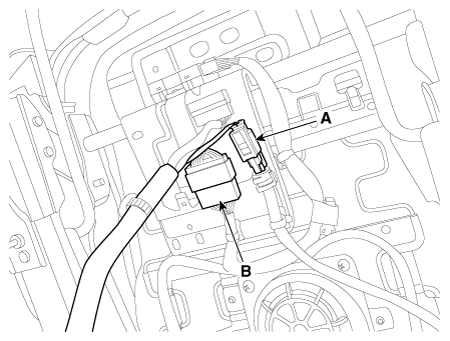

Fig 3: Locating Airbag Connector, Seat Warmer & Power Seat Switch Connector And Front Seat Belt Buckle Connector - Passenger's
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- SEAT MOUNTING BOLT INSTALLATION PROCEDURE
- Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
- Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and fro smoothy and the locking portion locks properly.
