Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the driver seat in the car.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the IMS module (A) after loosen the screws.
  4. Disconnect the connectors (B) from the IMS module.

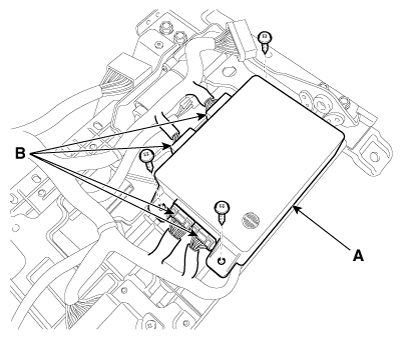

Fig 1: IMS Module And Connectors With Screws
G12164722Courtesy of KIA MOTORS AMERICA, INC.
