Monitor KDS/GDS Data

  1. Ignition "OFF"
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Monitor "ESP On/Off Switch" parameter in "Current Data" with KDS/GDS.
  5. Operate the ESC/ESP On/Off switch.

    Specification:  Switch pushed - ON/Switch not pushed - OFF

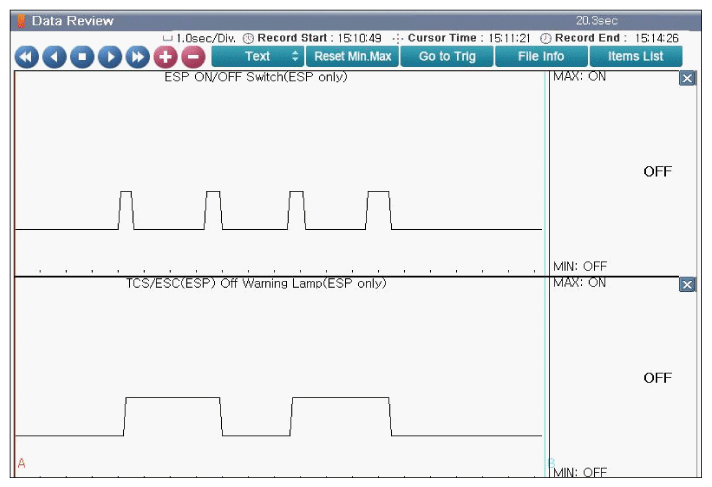

    Fig 1: Scantool Display - ESP ON/OFF Switch Status Current Data When Switch Pushed
    G12160292Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    NO
