Description And Operation: Description: Notes
WARNING: This page is about a different variant/trim than selected.
- The sensor used is a thermistor (NTC) in which resistance changes with temperature variation.
- The TCM supplies about 5 voltage to the sensor; the output value changes with ATF temperature.

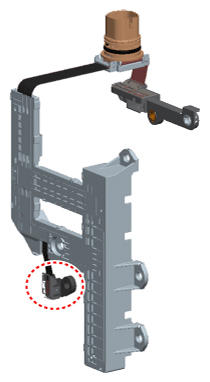

- Oil temperature sensor is installed on the valve body integrated with a main harness.
