Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

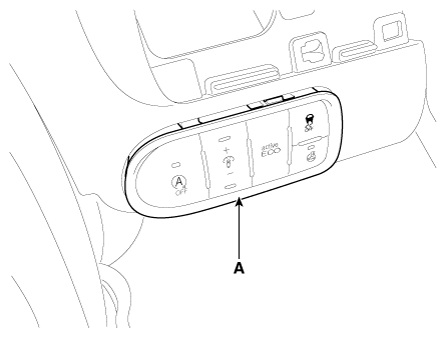

  2. Remove the crash pad side switch assembly (A).
    Fig 1: Locating Crash Pad Side Switch Assembly
    G12163897Courtesy of KIA MOTORS AMERICA, INC.

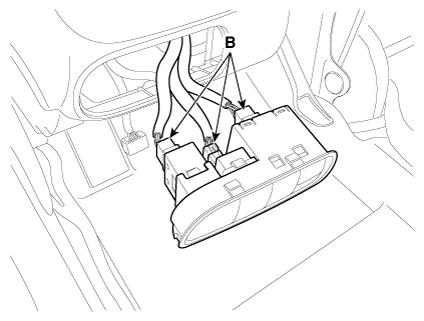

  3. Disconnect the crash pad switch connector (B).
    Fig 2: Locating Crash Pad Switch Connector
    G12163898Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
Fig 3: ESC OFF Switch Terminal Continuity Chart
G12163899Courtesy of KIA MOTORS AMERICA, INC.
