Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

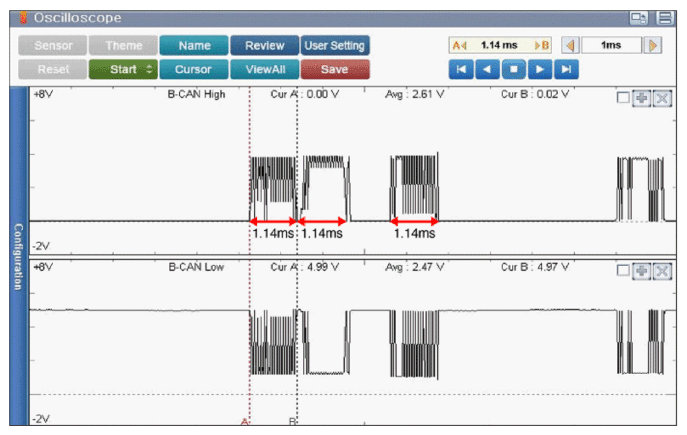

Fig 1: Screen Display - Normal B-CAN (High & Low) Signal Waveform - Time Frame 1MS
G12320702Courtesy of KIA MOTORS AMERICA, INC.
