Repair Procedures: Removal

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconncet the negative (-) battery terminal.

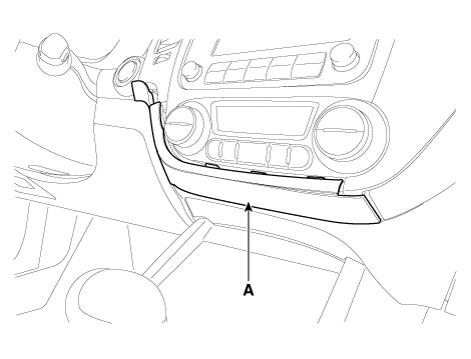

Using a screwdriver or remover, remove the center fascia garnish (A).

Fig 1: Center Fascia Garnish
Courtesy of KIA MOTORS AMERICA, INC.

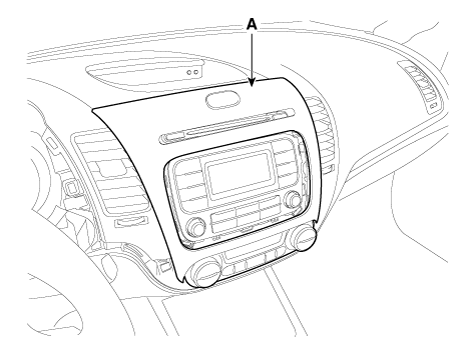

Using a screwdriver or remover, remove the center fascia panel (A).

Fig 2: Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

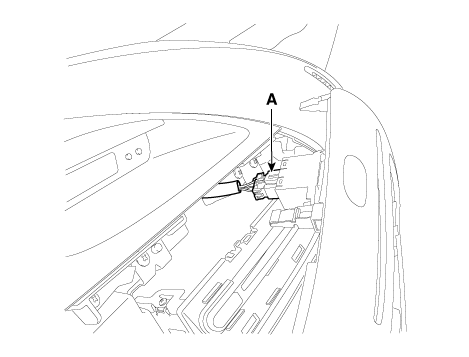

Remove the center fascia panel after disconnecting the hazard switch connector (A).

Fig 3: Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

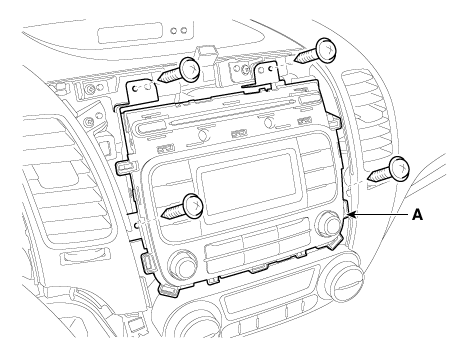

Remove the audio head unit (A) after loosening the mounting screws (4EA).

Fig 4: Audio Head Unit With Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

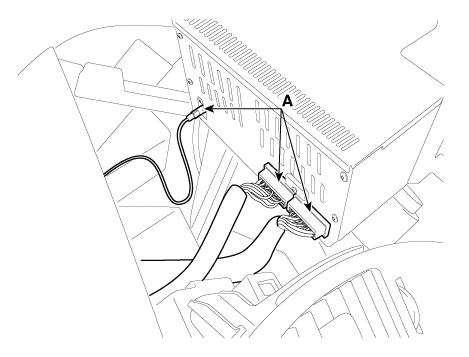

Disconnect the connectors and cable (A) from the audio head unit.

Fig 5: Connectors And Cable

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the CD does not eject, do not attempt to remove it because the audio unit may be damaged. Contact an authorized dealership for assistance.
