Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the brake fluid level switch connector, and remove the reservoir cap.
Remove the brake fluid from the master cylinder reservoir with a syringe.
CAUTION: Do Not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Remove the wheel & tire.
Disconnect the brake tube by loosening the tube flare nut (B).
Tightening Torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

Front

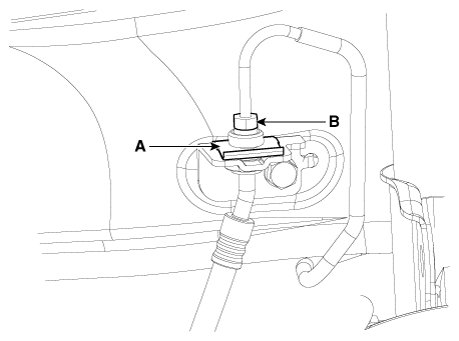

Fig 1: Locating Brake Hose Clip And Tube Flare Nut - Front
Courtesy of KIA MOTORS AMERICA, INC.

Rear

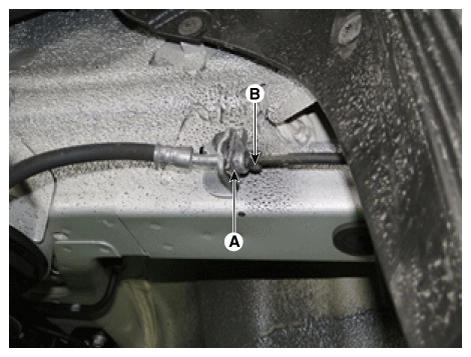

Fig 2: Locating Brake Hose Clip And Tube Flare Nut - Rear
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake hose clip (A).
Disconnect the brake hose from the brake caliper by loosening the bolt (A).
Tightening Torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Front

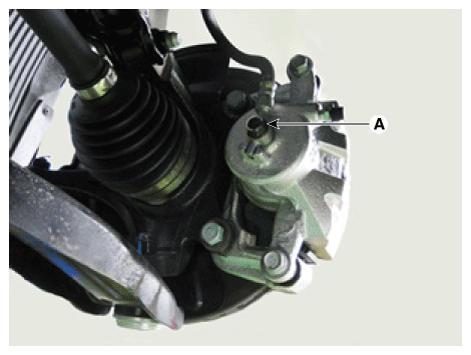

Fig 3: Locating Brake Caliper Bolt - Front
Courtesy of KIA MOTORS AMERICA, INC.

Rear

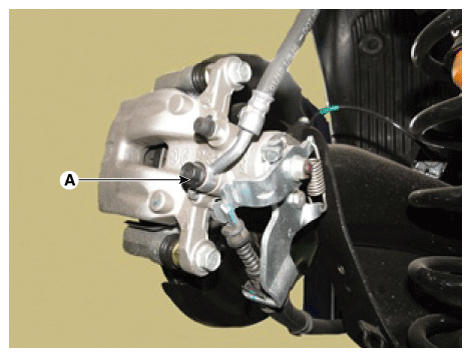

Fig 4: Locating Brake Caliper Bolt - Rear
Courtesy of KIA MOTORS AMERICA, INC.
