Hybrid Power Control Unit (HPCU) Terminal And Input/Output Signal: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

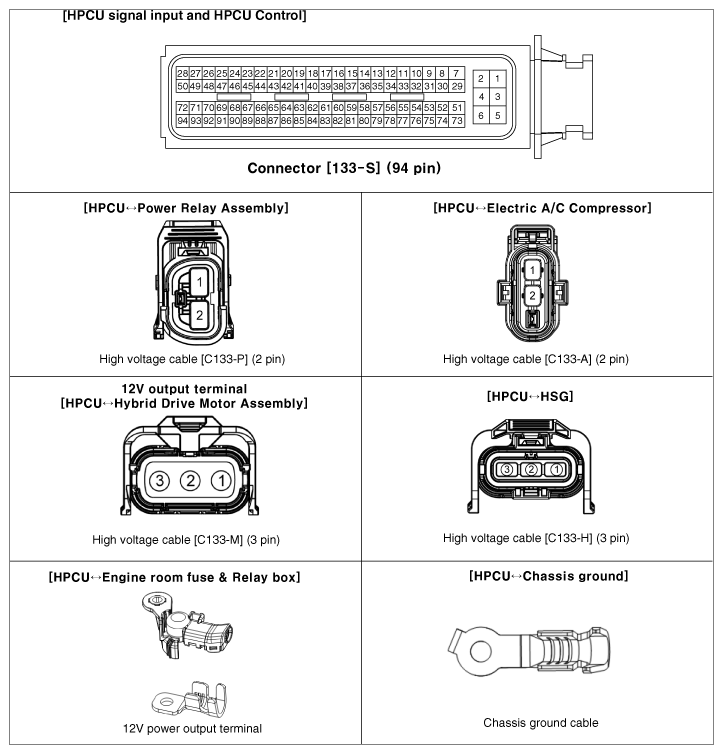

Fig 1: Locating Hybrid Power Control Unit (HPCU) Terminal And Input/Output Signal
G12336747Courtesy of KIA MOTORS AMERICA, INC.

ECM Terminal Function
