Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to protect your hands.
- NEVER attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat back cover.
(Refer to Front Seat - "FRONT SEAT BACK COVER ")
- Remove the front seat cushion cover.
(Refer to Front Seat - "FRONT SEAT CUSHION COVER ")
- Remove the lumbar support assembly.
(Refer to Body Electrical System - "LUMBAR SUPPORT UNIT ")

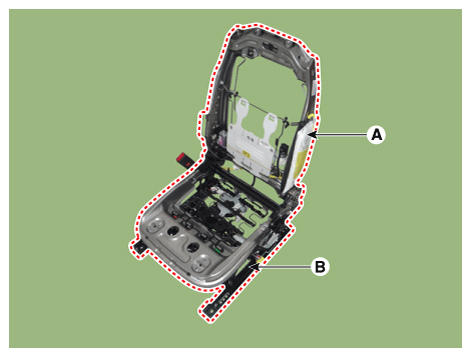

- After loosening the mounting bolts, disconnect the front seat back frame assembly (A) and front seat cushion frame assembly (B).
Tightening Torque:
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)
- Install in the reverse order of removal.
