Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the smart junction box.
(Refer to Body Electrical System - "RELAY BOX (PASSENGER COMPARTMENT) ")
Disconnect the ignition lock switch connector (A).

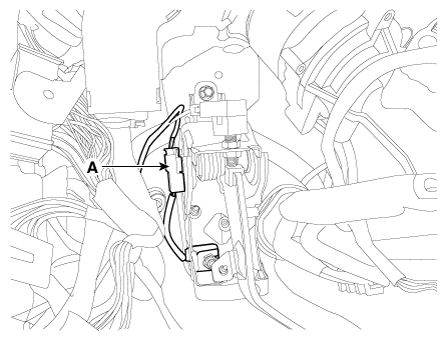

Fig 1: Ignition Lock Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition lock switch by loosening a nut (A).

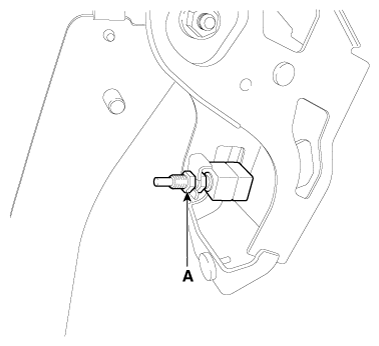

Fig 2: Ignition Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.
