Check The Power Source Circuit
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the connector from the ESC Control Module.

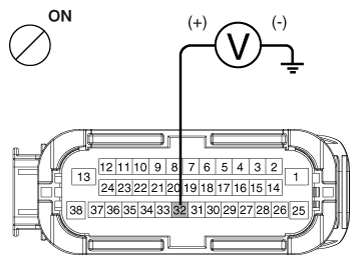

- Turn the ignition switch ON, measure the voltage between terminal 32 of the ESC control module harness side connector and body ground.
Specification : approximately B+
Is the voltage within specification?
YES
- Check the ground circuit.
NO
- Check the Harness or Connector between the Fuse (10A) in the Engine compartment Junction Block and the ESC Control Module. Repair if necessary.
