Description And Operation: Description: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Introduction Of Quick Brake Warning System (ESS)

In case of quick brake by driver, the brake lamp or turn signal is blinked to warn against the vehicle at rear.

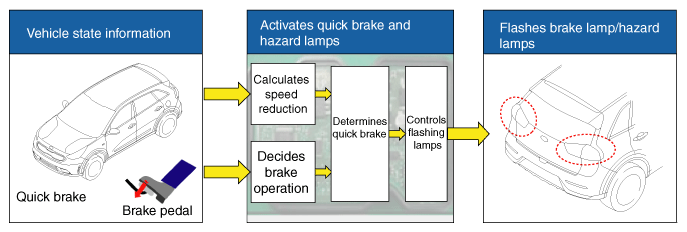

Fig 1: Emergency Signal System Operation Diagram

Courtesy of KIA MOTORS AMERICA, INC.

Basic function (Blinking the brake lamp/emergency lamp)
- Operation condition: In case of quick brake or operation of ABS above in a certain speed
- Releasing condition: In case of stopping the quick brake or releasing the ABS operation
Additional function (Blinking the turn signal)
- Operation condition: In case of quick brake in low speed
- Releasing condition: Releasing at the start of driving

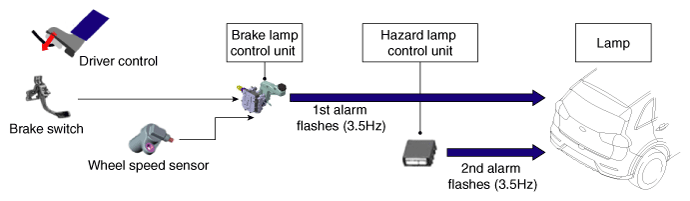

Fig 2: Blinking Brake Lamp/Emergency Lamp System Diagram

Courtesy of KIA MOTORS AMERICA, INC.
