Neutralizing Of SMARTRA

The EMS can be set to the status "Neutral" by tester

Ignition key (regardless of key status) is inserted and after IGN ON. If receiving the correct vehicle password from GST, SMARTRA can be neutralized.

The neutralization of SMARTRA is possible if DPN is same as the value inputted by GST.

In case that the SMARTRA status is neutral, the EMS keeps the lock state. And the start is not possible by "twice ignition".

In case of changing the vehicle password, new virgin transponder must be only used. And in case of virgin key, after Learning the key of vehicle password, it can be used.

If wrong vehicle specific data have been sent to SMARTRA three times continuously or intermittently, the SMARTRA will reject the request to enter neutral mode for one hour. Disconnecting the battery or other manipulation cannot reduce this time. After connecting the battery the timer starts again for one hour.

Fig 1: Neutralizing Of SMARTRA Function Chart

Courtesy of KIA MOTORS AMERICA, INC.

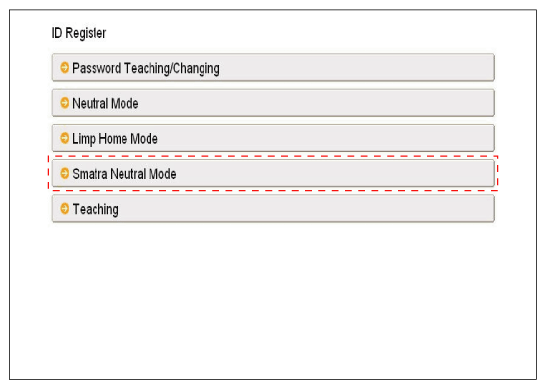

Fig 2: Screen Display - Setting To SMARTRA Neutral Mode

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - SMARTRA Neutral Mode, Input PIN Code

Courtesy of KIA MOTORS AMERICA, INC.

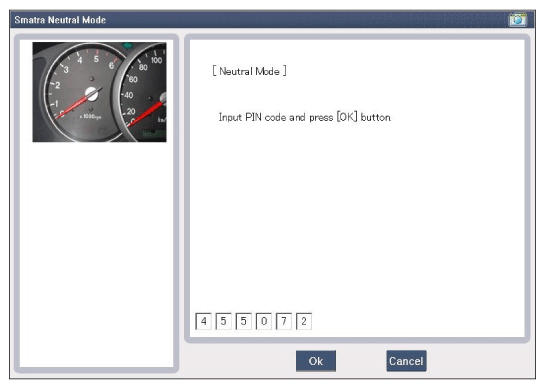

Fig 4: Screen Display - SMARTRA Neutral Mode, Input PIN Code And Press OK Button

Courtesy of KIA MOTORS AMERICA, INC.

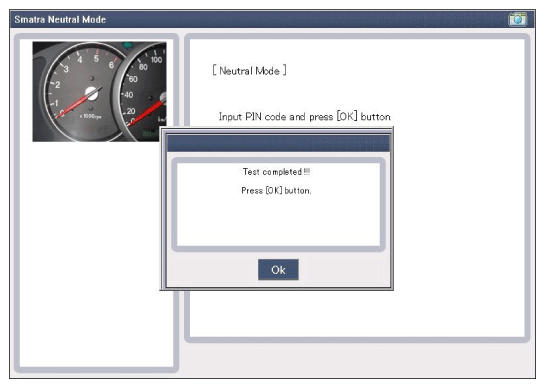

Fig 5: Screen Display - SMARTRA Neutral Mode, Test Completed

Courtesy of KIA MOTORS AMERICA, INC.

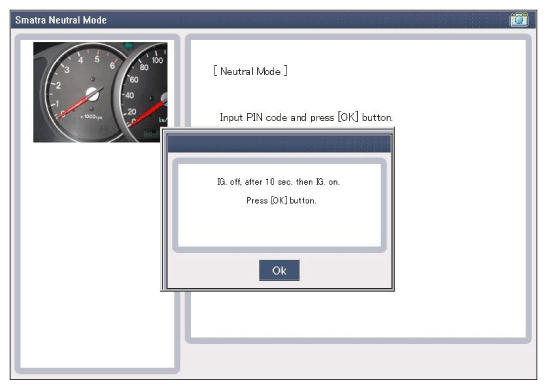

Fig 6: Screen Display - SMARTRA Neutral Mode, Press OK Button After 10Sec

Courtesy of KIA MOTORS AMERICA, INC.

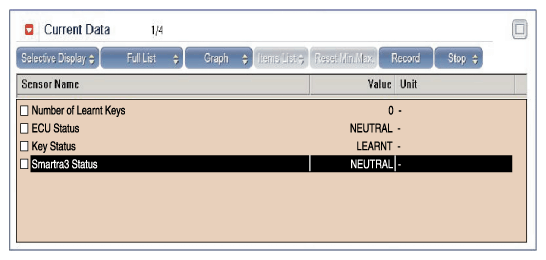

Fig 7: Screen Display - Select Current Data Menu

Courtesy of KIA MOTORS AMERICA, INC.
