Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the heater and blower assembly.
(Refer to Heater -"HEATER UNIT ")
Remove the heater core cover (A) after loosening the mounting screws.

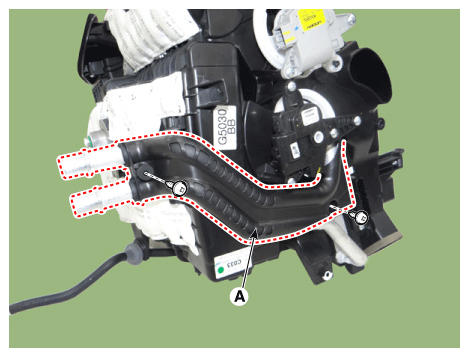

Fig 1: Removing Heater Core Cover Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting screws and remove heater core cover (A).

Fig 2: Removing Heater Core Cover
Courtesy of KIA MOTORS AMERICA, INC.
Pull out the heater core (A) from the heater unit.

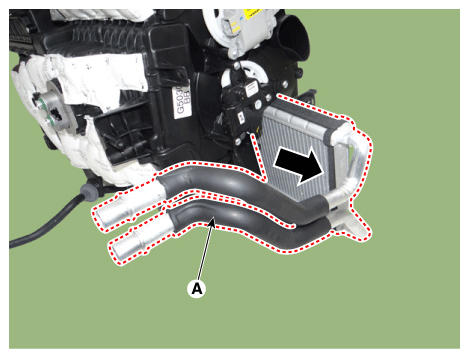

Fig 3: Pulling Out Heater Core From Heater Unit
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
- When installing a new heater core, add refrigerant oil (POE OIL).
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- Immediately after using the oil, replace the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Apply sealant to the grommets.
- Make sure that there is no air leakage.
- Charge the system and test its performance.
- Install the hose clamps securely without interchanging the inlet and outlet heater hoses.
