Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

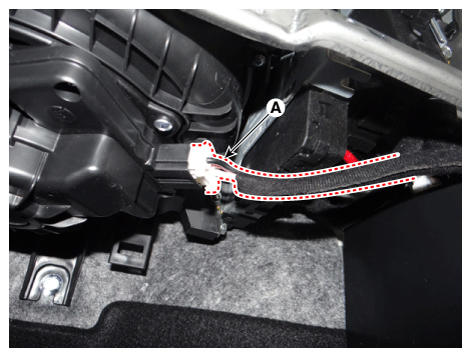

Disconnect the Blower Motor connector (A).

Fig 1: Locating Blower Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

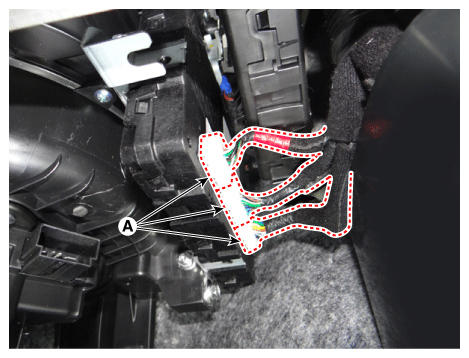

Disconnect the Body Control Module connectors (A).

Fig 2: Locating Body Control Module Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the Body Control Module (A) after loosening the mounting bolts and nuts.

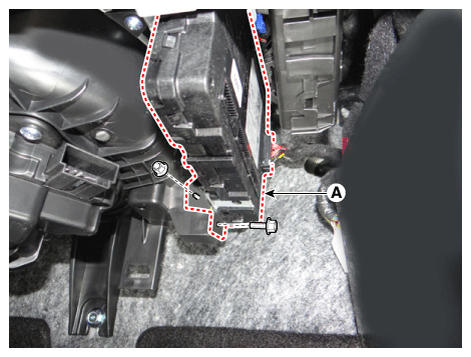

Fig 3: Removing Body Control Module Mounting Bolts And Nuts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

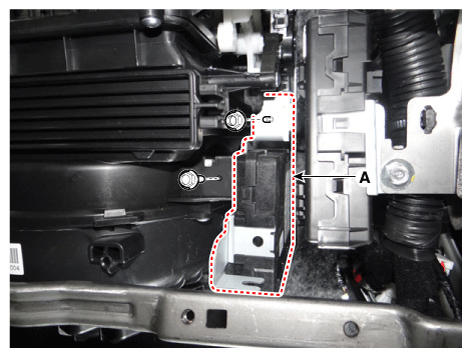

Fig 4: Removing Body Control Module Mounting Bolts And Nuts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

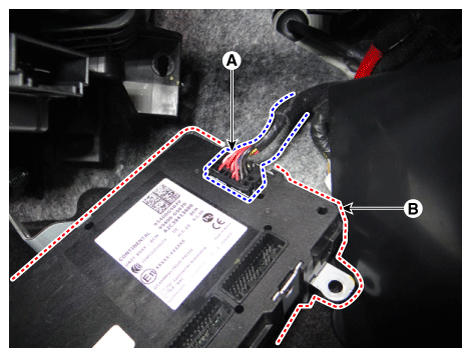

Remove the Body Control Module (B) after disconnecting the connector (A).

Fig 5: Locating Body Control Module Connector

Courtesy of KIA MOTORS AMERICA, INC.
