Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

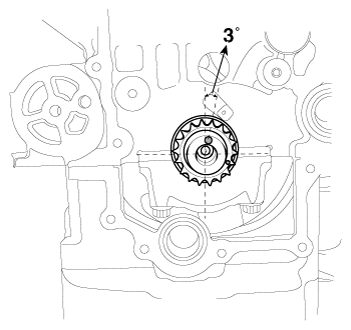

Dowel pin of crankshaft should be positioned at 3° in relation to vertical center line.

Fig 1: Positioning Crankshaft Dowel Pin At 3°
Courtesy of KIA MOTORS AMERICA, INC.

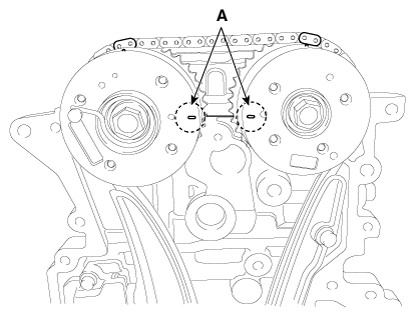

Align the TDC marks (A) of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.

Fig 2: Locating TDC Marks Of CVVT Sprockets
Courtesy of KIA MOTORS AMERICA, INC.

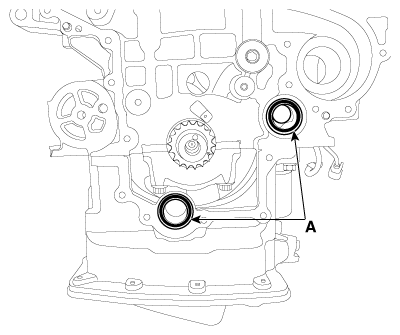

Install the new O-rings (A).

Fig 3: Locating O-Rings
Courtesy of KIA MOTORS AMERICA, INC.

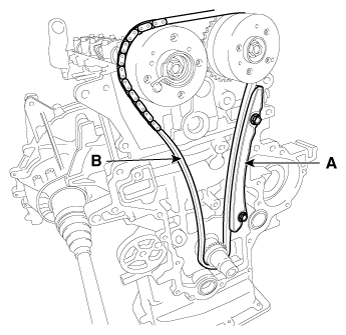

Install the timing chain guide (A) and the timing chain (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 4: Locating Timing Chain And Timing Chain Guide
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing a timing chain, align the timing marks on the sprockets with paint marks of the chain.
- Order: Crankshaft sprocket → Timing chain guide → Intake CVVT sprocket → Exhaust CVVT sprocket.

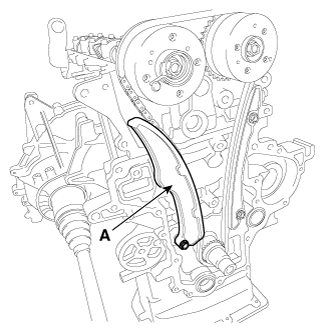

Install the chain tensioner arm (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 5: Locating Chain Tensioner Arm
Courtesy of KIA MOTORS AMERICA, INC.

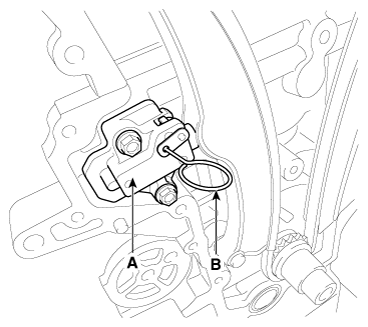

Install the timing chain auto tensioner (A) and remove the pin (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 6: Locating Timing Chain Auto Tensioner And Pin
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Recheck the top dead center (TDC) marks on the crankshaft and camshaft.
Install the other parts in the reverse order of removal.
