Repair Procedures: Replacement

Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

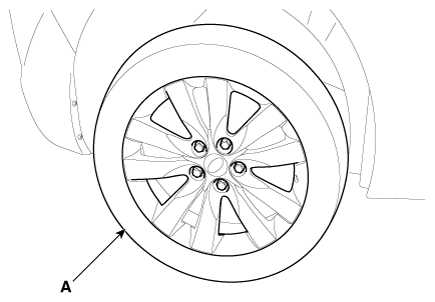

Fig 1: Locating Front Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to damage to the hub bolts when removing the rear wheel and tire (A).
Remove the rear shock absorber (A) from the frame by loosening the bolt & nut.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

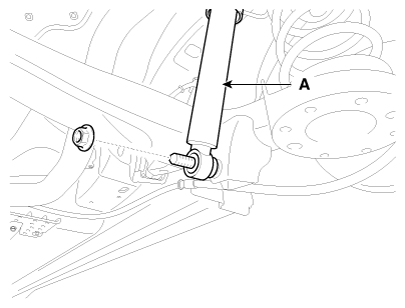

Fig 2: Locating Rear Shock Absorber With Bolt & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
Check the rear alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
