Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

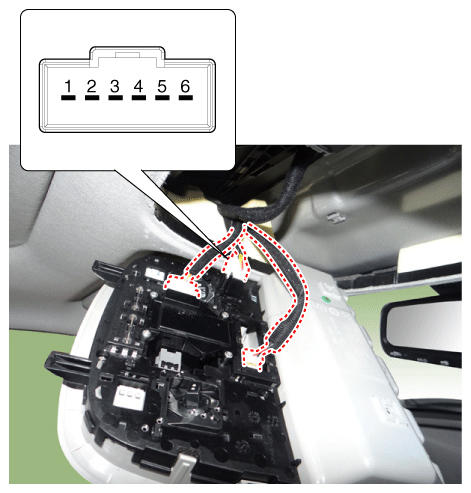

Fig 1: Overhead Console Lamp Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Overhead Console Lamp Terminal Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
