Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Detach the vanity lamp (A) using a flat-tip screwdriver.

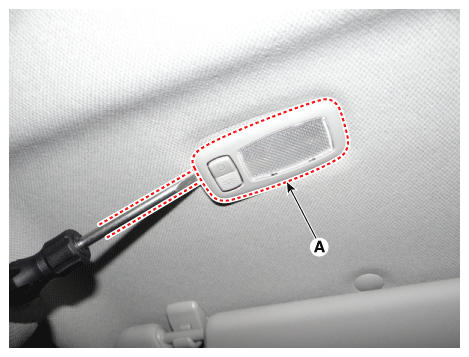

Fig 1: Detaching Vanity Lamp Using Flat-Tip Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vanity lamp connector (A).

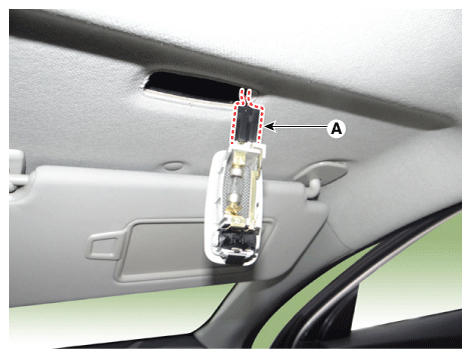

Fig 2: Locating Vanity Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
