Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the caps (A) and screws, then remove the assist handle (B).

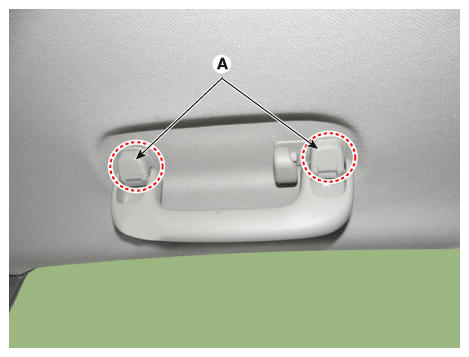

Fig 1: Locating Caps
Courtesy of KIA MOTORS AMERICA, INC.

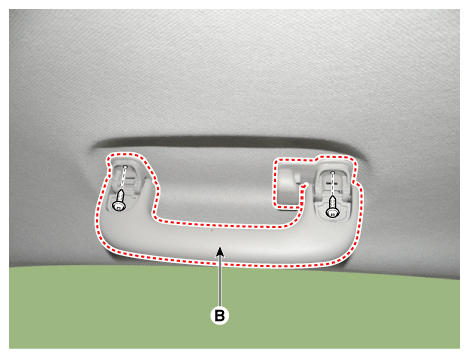

Fig 2: Locating Assist Handle
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
