Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

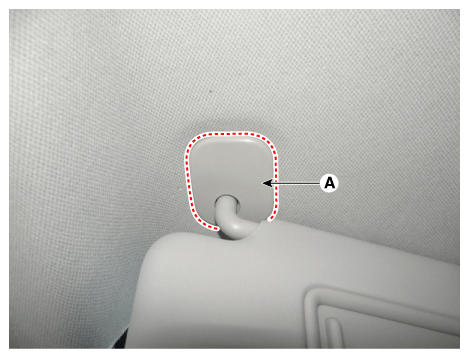

Remove the cap (A) by using a remover.

Fig 1: Locating Cap
Courtesy of KIA MOTORS AMERICA, INC.

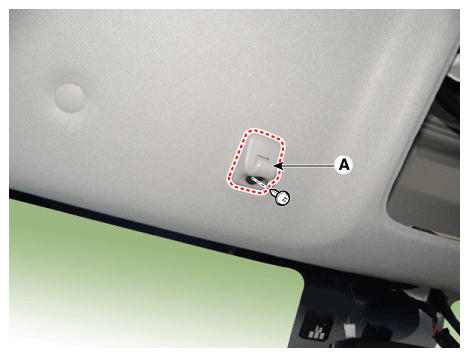

Remove the retainer (A) after loosening the screw.

Fig 2: Locating Retainer
Courtesy of KIA MOTORS AMERICA, INC.

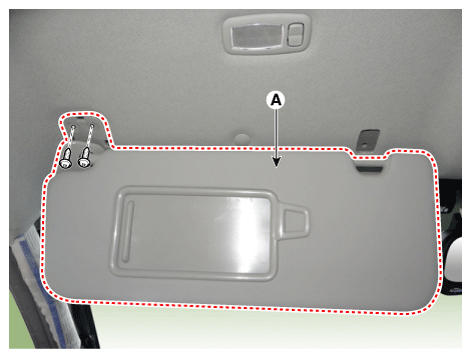

Remove the sun visor (A) after loosening the screws.

Fig 3: Removing Sun Visor Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
