Smart Key Code Saving

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of KDS/GDS to the Data Link Connector in driver side crash pad lower panel, turn the power ON KDS/GDS.

Fig 1: Data Link Connector In Driver Side Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart Key Code Saving".

Fig 2: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.

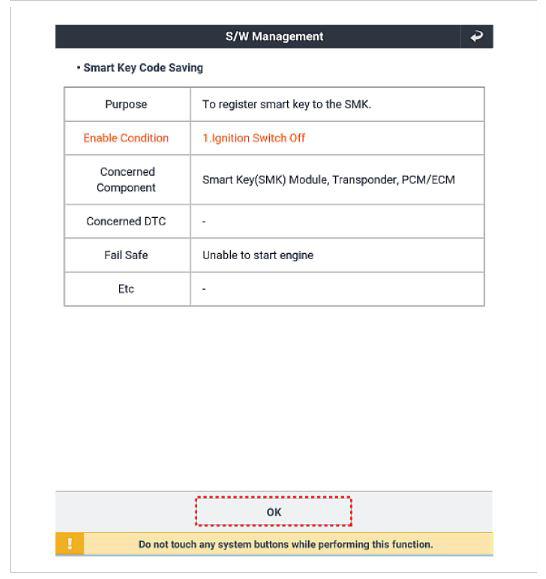

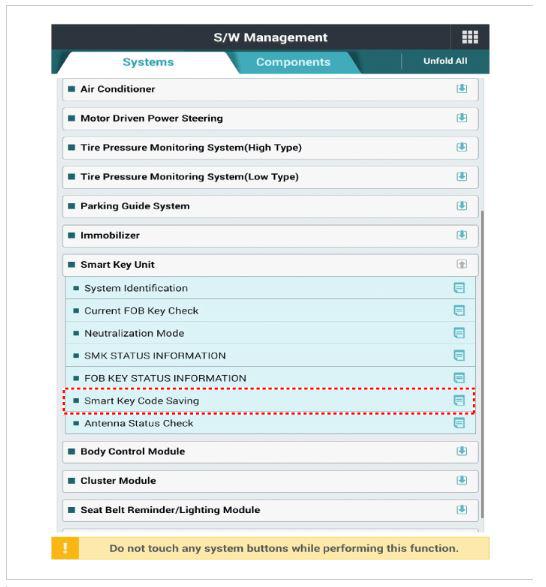

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

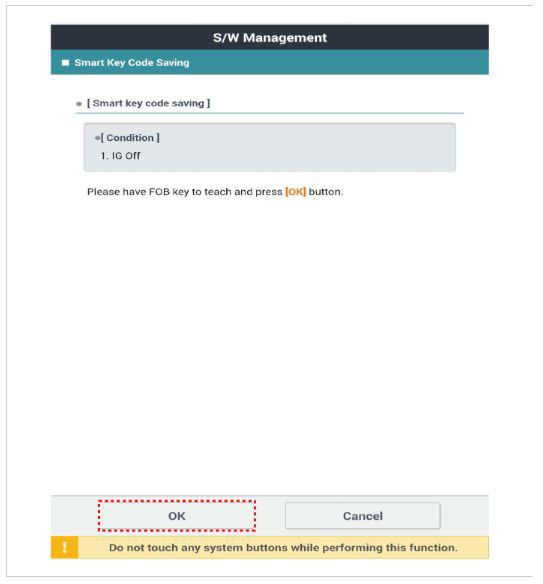

After selecting "Smart Key Teaching" menu, push "Enter" Key, then the screen will be displayed below.

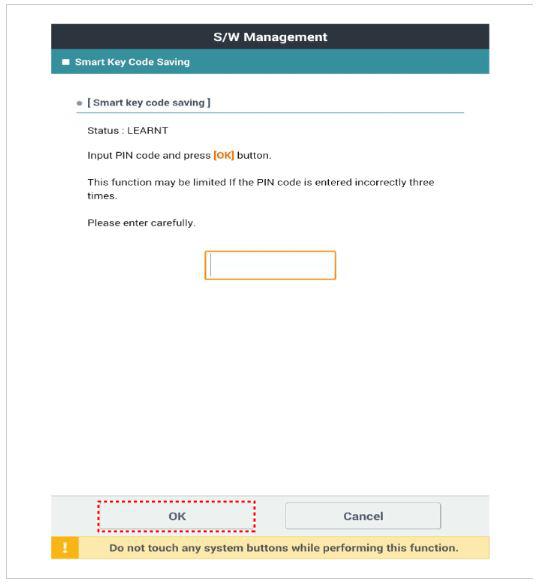

Fig 4: Scantool Display - Smart Key Code Saving (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.
After having the Teaching Smart Key, push "ENTER" Key.

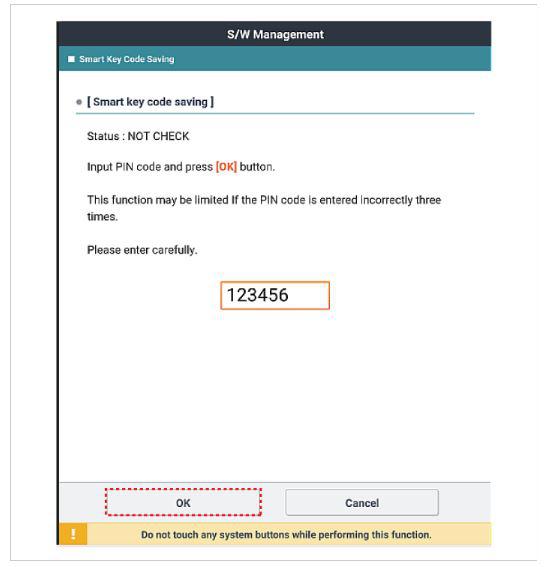

Input the "Pin Code" for first Key Teaching.

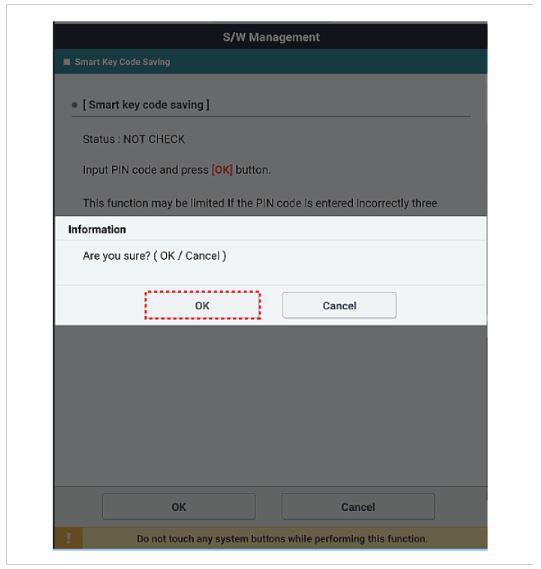

Fig 5: Scantool Display - Smart Key Code Saving (Press OK Button)
Courtesy of KIA MOTORS AMERICA, INC.

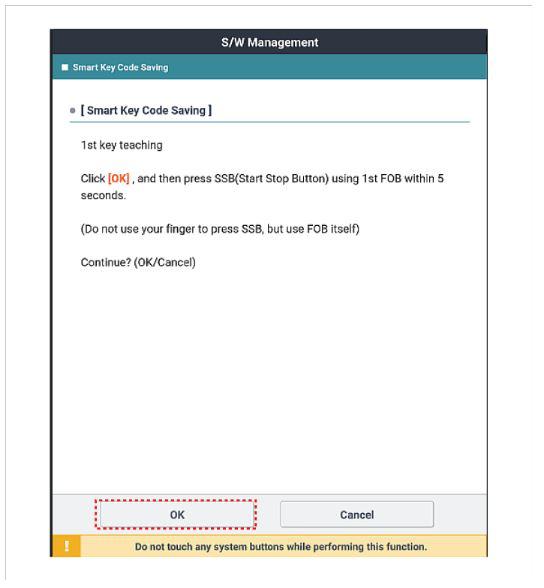

Fig 6: Scantool Display - Smart Key Code Saving (1st Key Teaching)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)

Courtesy of KIA MOTORS AMERICA, INC.

Confirm the message "First Key Teaching Completed".

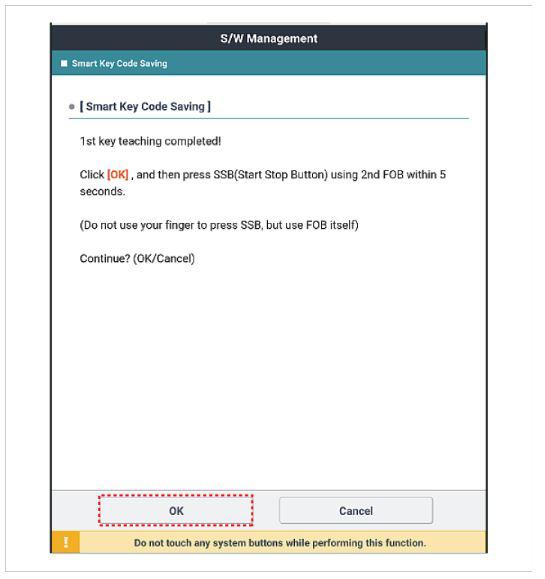

Fig 8: Scantool Display - Smart Key Code Saving (2nd Key Continue)
Courtesy of KIA MOTORS AMERICA, INC.

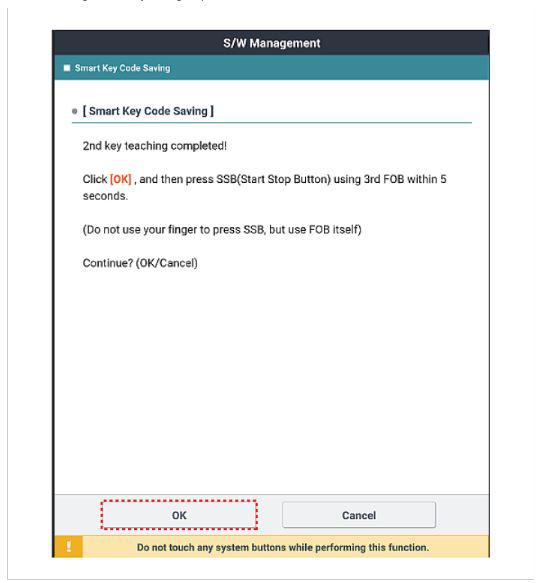

Confirm the message "Second Key Teaching Completed".

Fig 9: Scantool Display - Smart Key Code Saving (Message)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be displayed as above when key teaching process is completed.

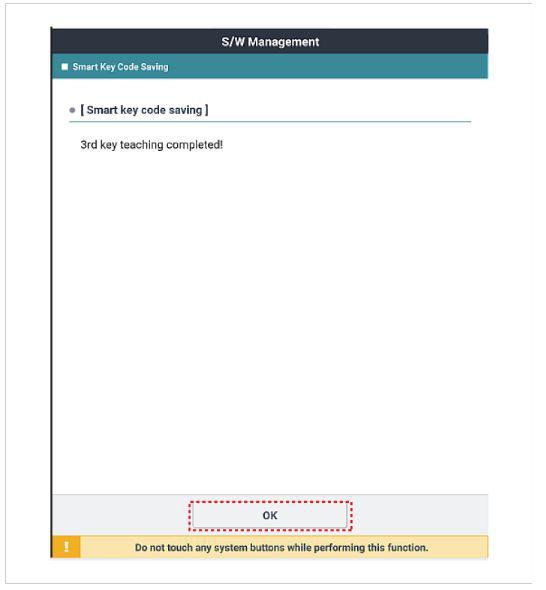

Fig 10: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

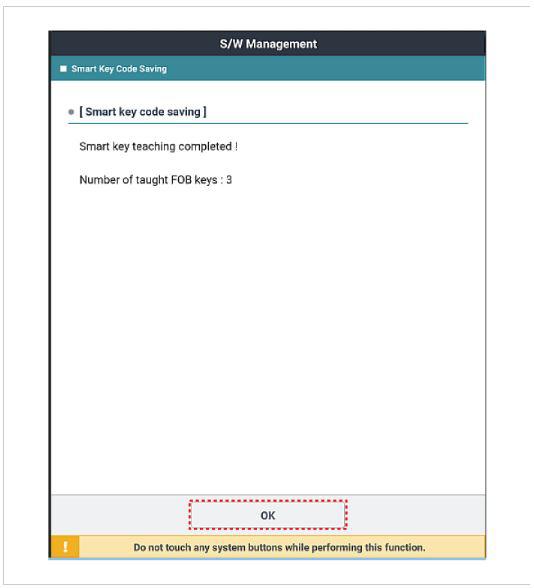

Then the screen will be displayed below when key teaching process is completed.

Fig 12: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
