Components And Components Location: Components

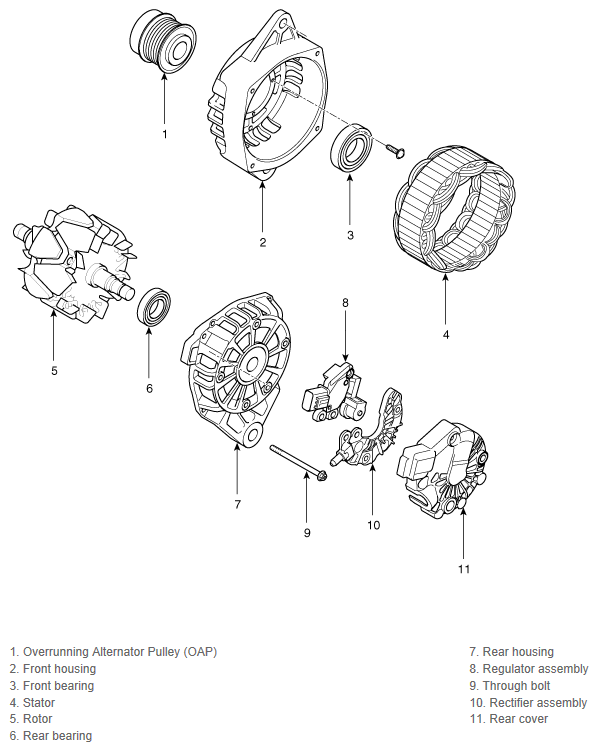

Fig 1: Alternator Components Location
G12161120Courtesy of KIA MOTORS AMERICA, INC.
