Repair Procedures: Disassembly

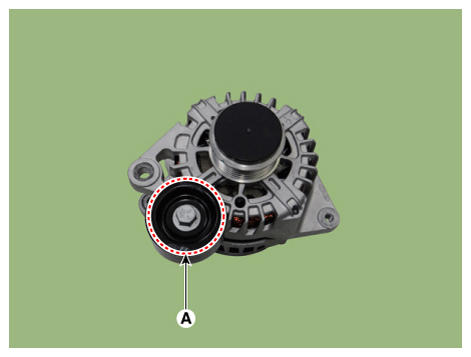

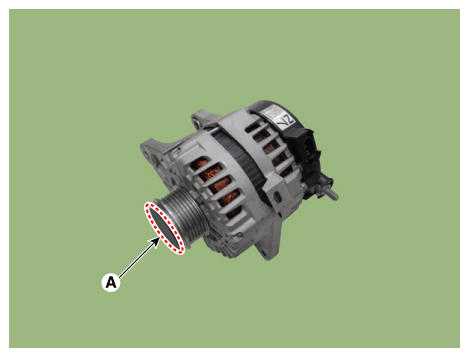

Remove the pulley (A) after loosening the mounting bolt.

Fig 1: Locating Pulley Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the OAP cap (A).

Fig 2: Locating OAP Cap
Courtesy of KIA MOTORS AMERICA, INC.

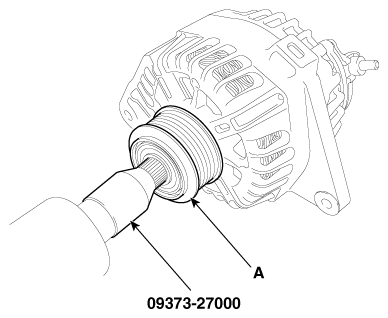

Using the SST (09373-27000), remove the OAP pulley (A).

Fig 3: Removing OAP Pulley Using SST (09373-27000)
Courtesy of KIA MOTORS AMERICA, INC.

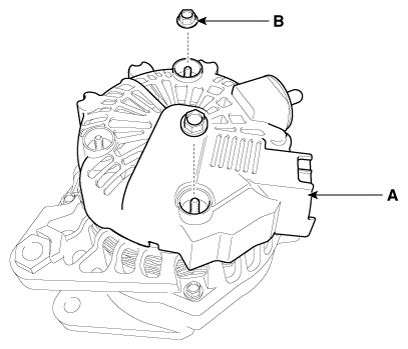

Remove the rear cover (A) after removing nuts (B).

Fig 4: Locating Rear Cover With Nuts
Courtesy of KIA MOTORS AMERICA, INC.

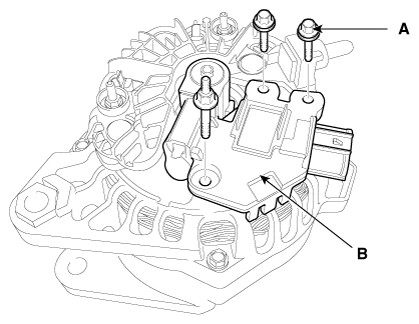

Remove the mounting bolts (A) and the regulator assembly (B).

Fig 5: Locating Regulator Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

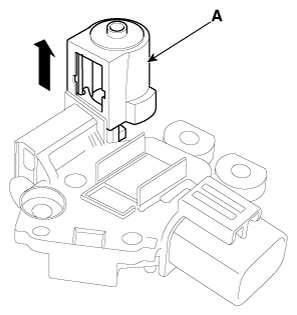

Remove the slip ring guide (A) after pulling it.

Fig 6: Removing Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.

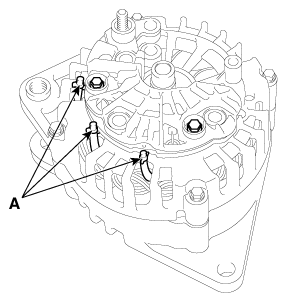

Unsolder the 3 stator leads (A).

Fig 7: Locating Stator Leads
Courtesy of KIA MOTORS AMERICA, INC.

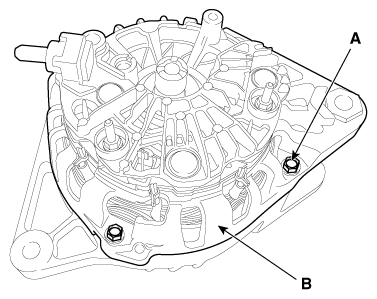

Remove the 4 through bolts (A).

Fig 8: Locating Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.

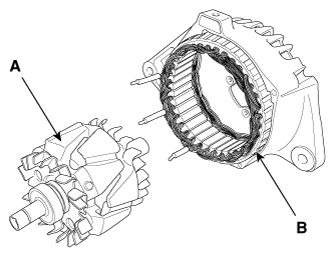

Disconnect the rotor (A) and housing (B).

Fig 9: Locating Rotor And Housing

Courtesy of KIA MOTORS AMERICA, INC.
