Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.

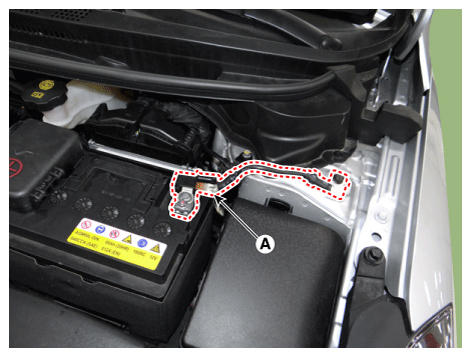

- Disconnect the battery sensor connector (A).
- Remove the battery negative (-) terminal after removing the bolts.
Battery sensor terminal mounting bolt:
29.4 - 31.4 N.m (3.0 - 3.2 kgf.m, 21.7 - 23.1 lb.ft)
Battery (-) terminal tightening nut:
4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)
