Components And Components Location: Components

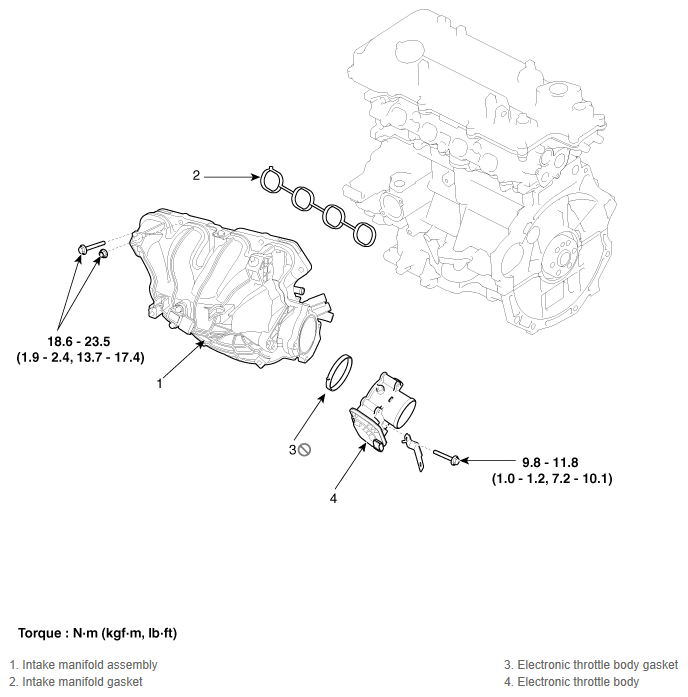

Fig 1: Intake Manifold Components Location With Torque Specification
G12161019Courtesy of KIA MOTORS AMERICA, INC.
