Component Inspection

■ Visual Check

1. IG "OFF" and disconnect HO2S (S1) connector.
2. Check that HO2S (S1) is contaminated or damaged by foreign materials.

■ Check HO2S (S1) performance

1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Check the "Current Data  " about related DTC with GDS.

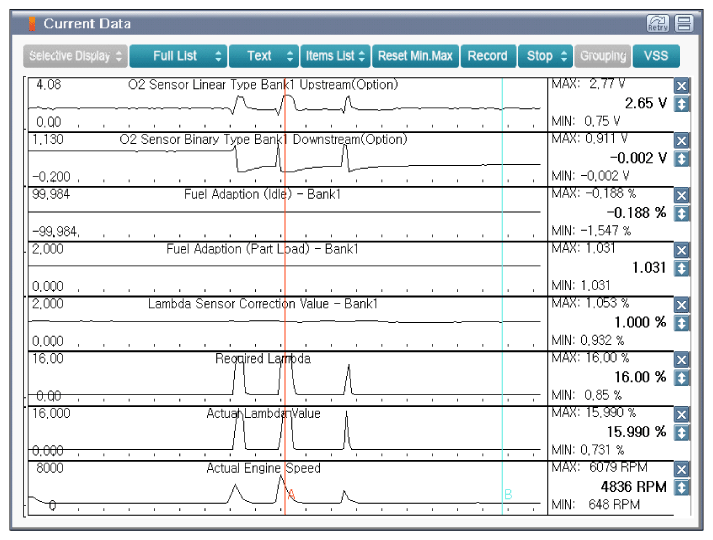

   Fig 1: Scantool Display - Engine Idle After Warm Up (Approx 2000 RPM)

   Courtesy of KIA MOTORS AMERICA, INC.
   1. Engine Idle after Warm Up
   2. Approx. 2000rpm
   Fig 2: Scantool Display - Acceleration

   Courtesy of KIA MOTORS AMERICA, INC.
   1. To compare the performance of the catalyst oxygen sensor 1 and 2 can be determined.

■ Confirm Part Inspection

1. Does the HO2S (S1) operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good HO2S (S1) and check for proper operation. If the problem is corrected, replace HO2S (S1) and then go to "Verification of Vehicle Repair " procedure.
