Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	Figures 1 - 2 below Figures 3 - 5 below

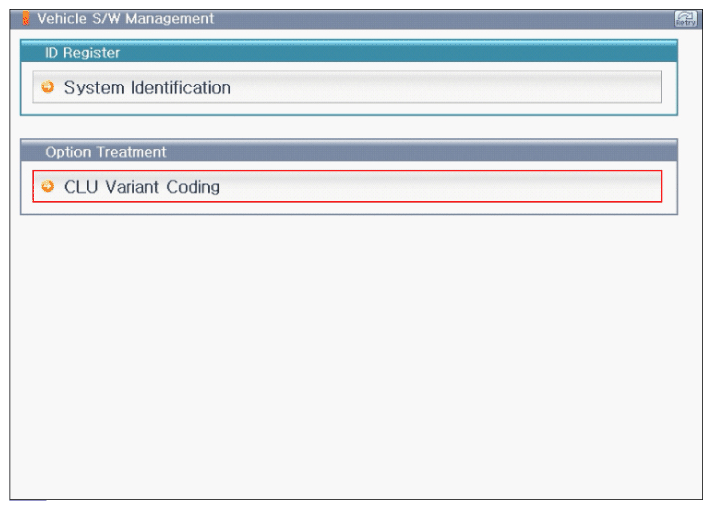

Fig 1: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

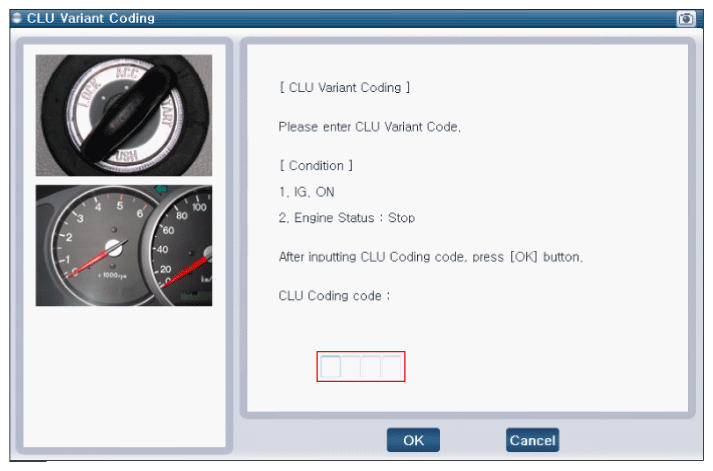

Fig 2: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

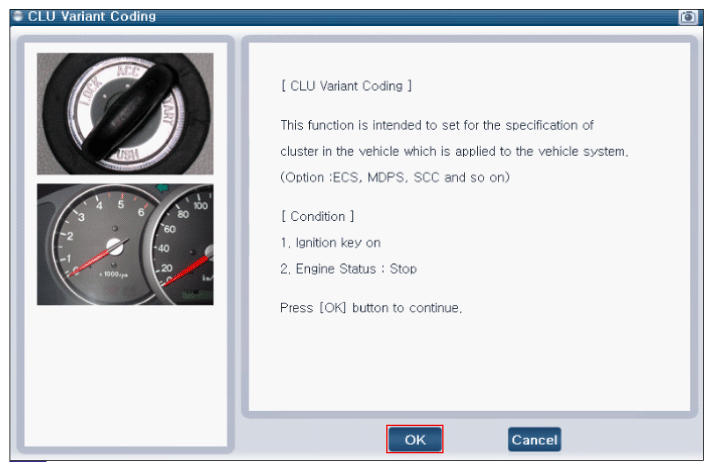

Fig 3: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
