[Intermediate Lock CVVT]

It increases the retarded amount compared to the default state to expand the operating range of the variable valve timing system.

The cam phase is fixed mechanically so that it is locked at the middle position.

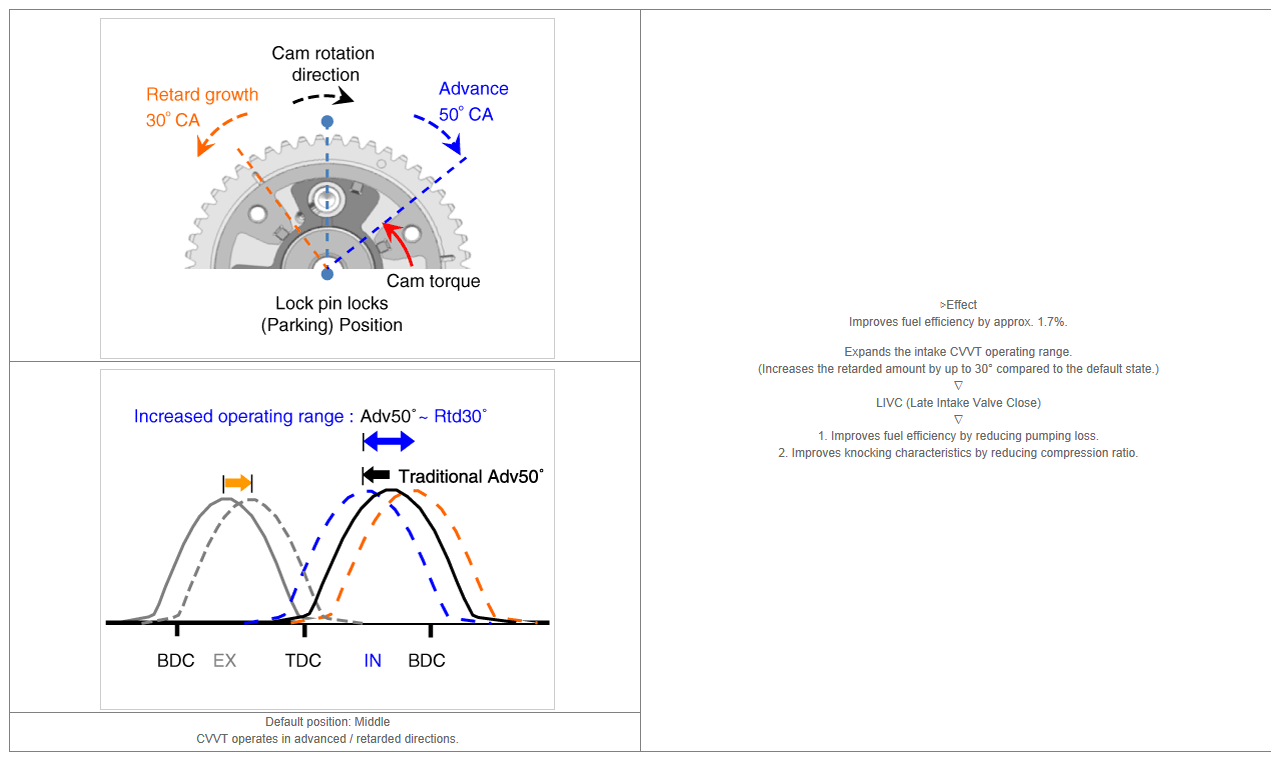

Fig 1: Variable Valve Timing System Operating Range

Courtesy of KIA MOTORS AMERICA, INC.
