Components And Components Location: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering back cover (A) after loosening the mounting screws.

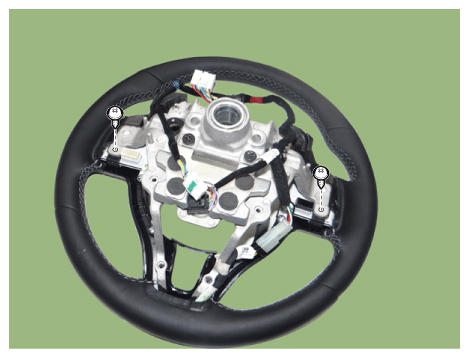

Fig 1: Removing Steering Back Cover (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

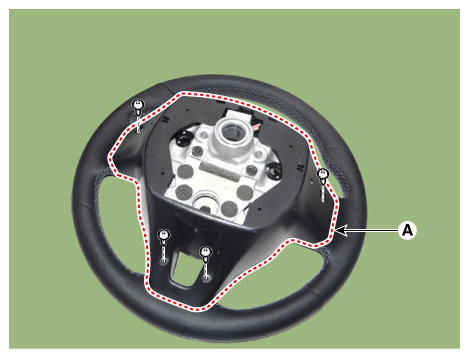

Fig 2: Removing Steering Back Cover (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring connector (A) from the steering back cover.

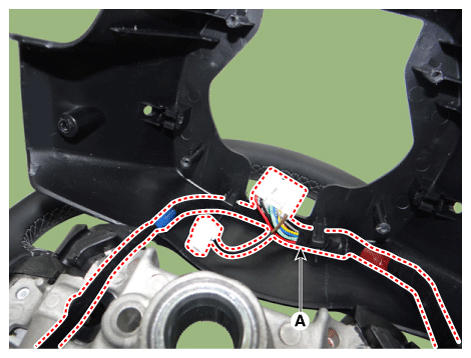

Fig 3: Removing Wiring Connector From Steering Back Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering wheel remote control connector (A).
[LH]

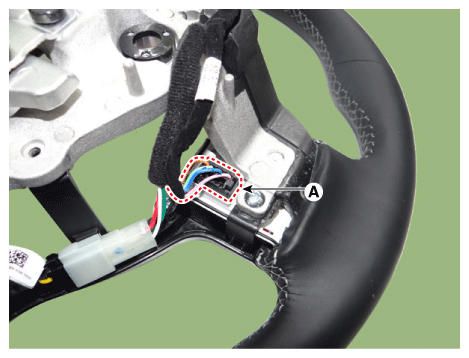

Fig 4: Disconnecting Steering Wheel Remote Control Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

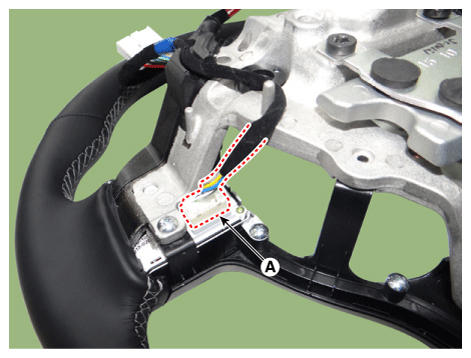

Fig 5: Disconnecting Steering Wheel Remote Control Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

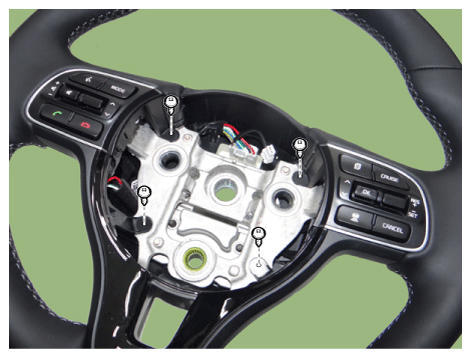

Fig 6: Removing Steering Wheel Remote Control Assembly Mounting Screws (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

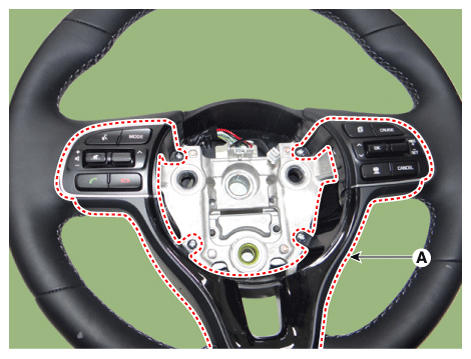

Fig 7: Removing Steering Wheel Remote Control Assembly Mounting Screws (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control (A) after loosening the mounting screws.

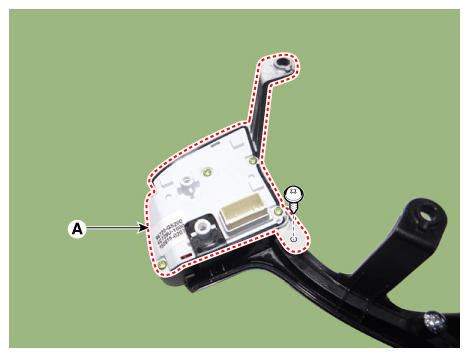

Fig 8: Removing Steering Wheel Remote Control Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
