Measuring Resistance

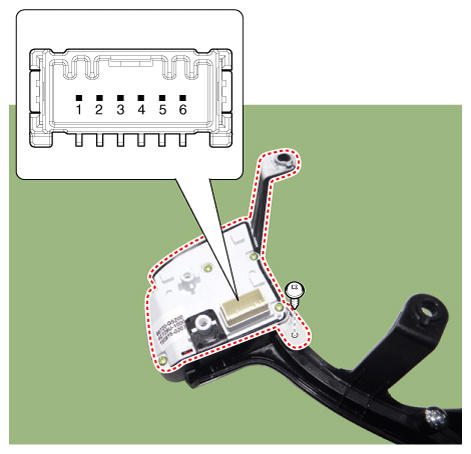

- Disconnect the Cruise Control Switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON (Switch is depressed).CRUISE CONTROL SWITCH TERMINAL RESISTANCE
Switch Terminal Resistance (±3%) Cancel 2 - 6 390Ω SET - 2 - 6 610Ω RES + 2 - 6 910Ω Cruise ON/OFF 2 - 6 1.38kΩ Following distance control (SCC) 2 - 6 3.63kΩ - If not within specification, replace switch.
