Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer To Body - "Floor Console Assembly")

  3. Remove the interior 1 antenna (A) after loosening the mounting bolt and nut and disconnecting the connector.

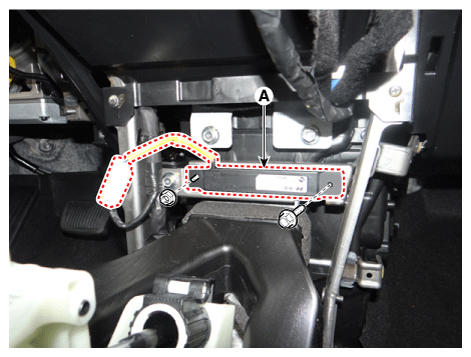

Fig 1: Removing Interior 1 Antenna Mounting Bolt
G12335142Courtesy of KIA MOTORS AMERICA, INC.
