Repair Procedures: Disassembly

Loosen the screw, and then remove the brake disc.
Tightening Torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft)

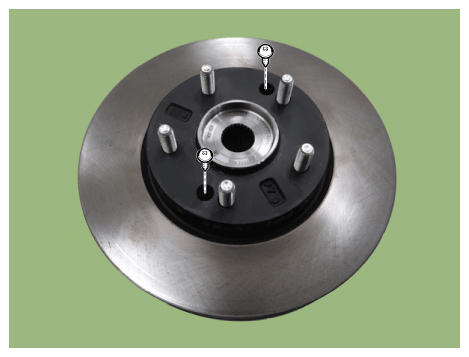

Fig 1: Removing Brake Disc
Courtesy of KIA MOTORS AMERICA, INC.
Remove the hub assembly mounting bolts from the knuckle.
Tightening Torque:

88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

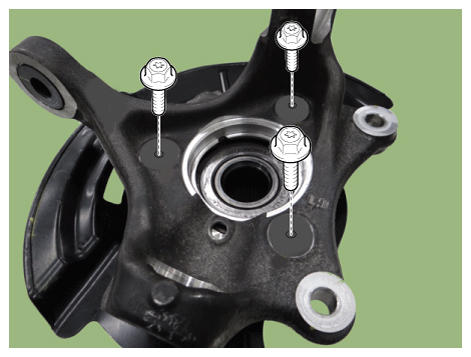

Fig 2: Removing Hub Assembly Mounting Bolts From Knuckle
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the dust cover bolts and then remove the dust cover.
Tightening Torque:

6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

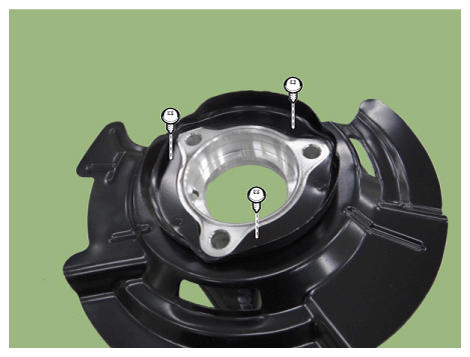

Fig 3: Removing Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.
