AC Inverter Outlet Switch
>>
Components Location
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location: Components

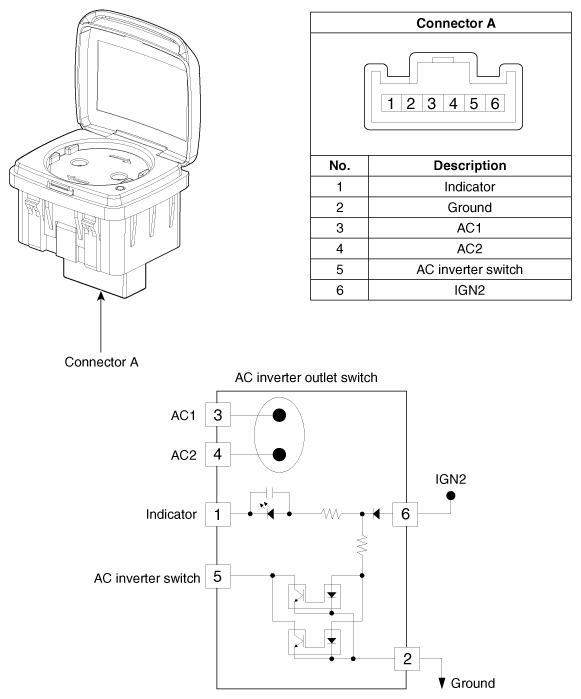

Fig 1: Locating AC Inverter Outlet Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
