Components And Components Location: Components

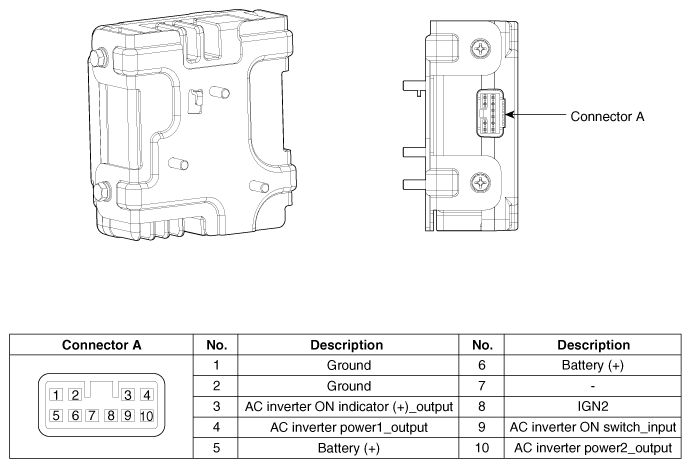

Fig 1: Locating AC Inverter Unit Connector Components
G12332228Courtesy of KIA MOTORS AMERICA, INC.
