[Fuel Pump Assembly]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Fuel Pump Assembly]

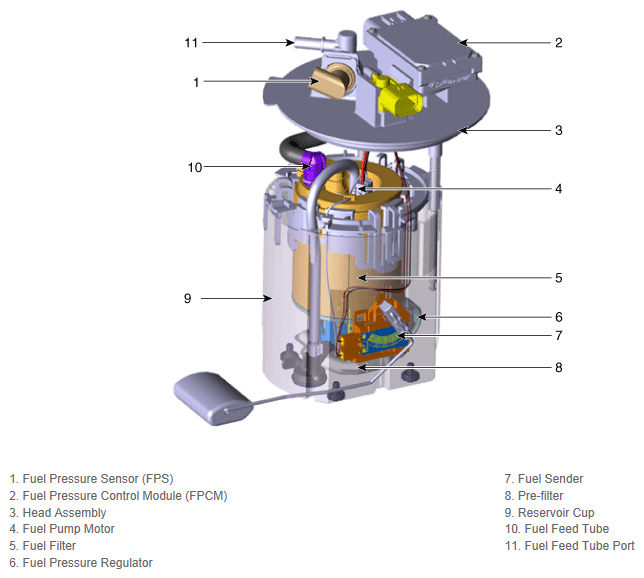

Fig 1: Locating Fuel Pump Assembly Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
