Repair Procedures: Installation

NOTE:

Check the following before installing the gear actuator assembly.
1. Check that the gear actuator is placed in the "neutral" state.
2. Check the assembled state of the O-rings (A).

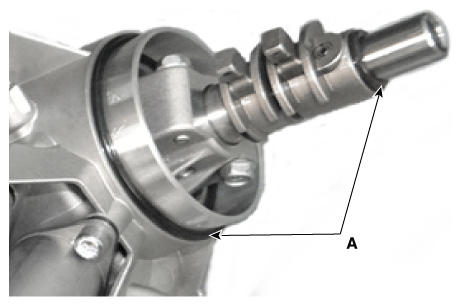

  Fig 1: Checking Assembled State Of O-Rings
  Courtesy of KIA MOTORS AMERICA, INC.
3. Apply gear oil to the surface of O-rings.
4. Check the assembled state of the dowel pins (A).

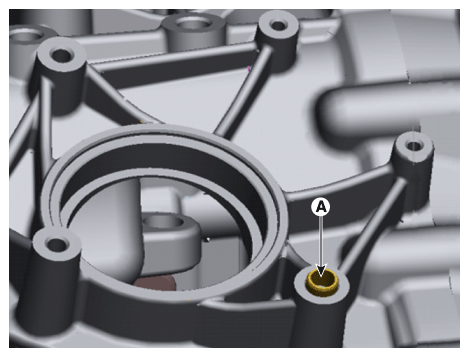

Fig 2: Checking Assembled State Of Dowel Pins
Courtesy of KIA MOTORS AMERICA, INC.
Perform the clutch touch point learning procedure using the KDS/GDS after replacing the gear actuator assembly.

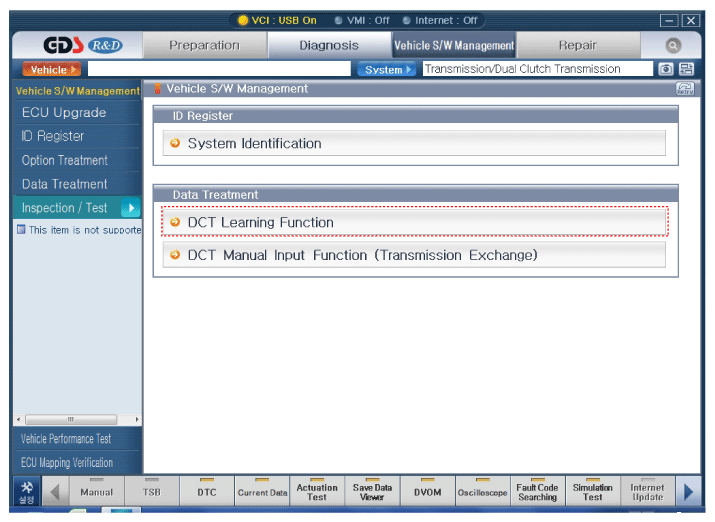

Fig 3: Screen Display - Perform Clutch Touch Point Learning Procedure
