Repair Procedures: Replacement

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).

    Spark Plug  :

    19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.0 Ib.ft)

    NOTE:
    • Be careful that no contaminates enter into spark plug holes.

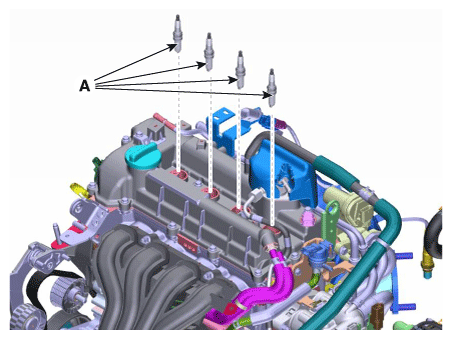

    Fig 1: Removing Spark Plug
    G12328591Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
