Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

1. Remove the rear pillar trim.

   (Refer to Interior Trim - "REAR PILLAR TRIM ")

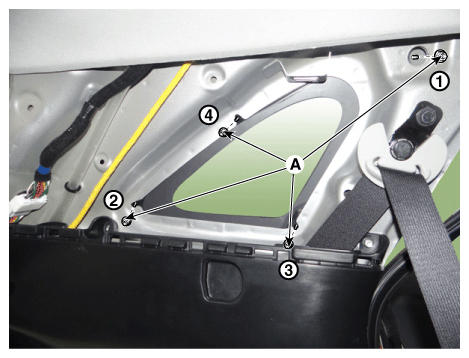

2. Loosen the quarter fixed glass (A) mounting nuts.

   Tightening Torque:

   3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb.ft)

   Fig 1: Loosening Quarter Fixed Glass Mounting Nuts

   Courtesy of KIA MOTORS AMERICA, INC.

   Information

   Tighten mounting nuts in the order of → → →.

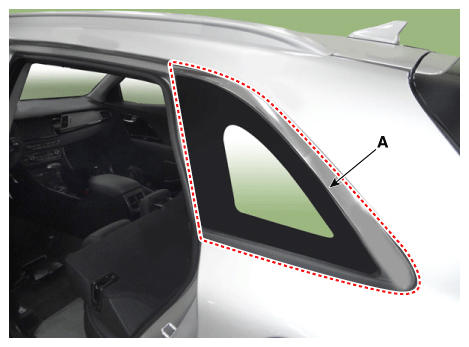

3. Remove the quarter fixed glass (A).
   Fig 2: Locating Quarter Fixed Glass

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

Replace any damaged clips.
