Description and Operation: Description
- Input speed sensor uses an electric current type hall sensor in which the current is changed by the magnetic variation.

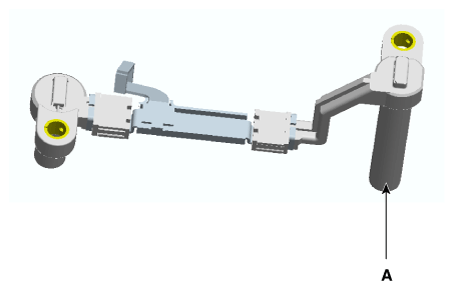

- Input speed sensor (A) and output speed sensor are integrated and installed in the transaxle.
Courtesy of KIA MOTORS AMERICA, INC.
