Repair Procedures: Removal

NOTE:

Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ").
Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

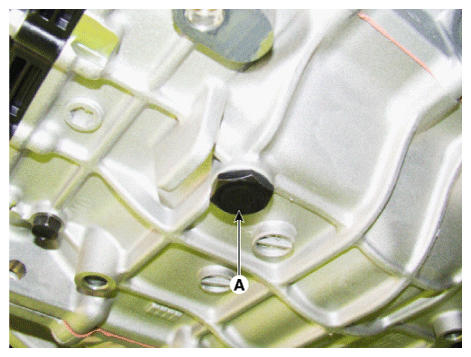

Fig 1: Removing ATF Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
- ATF can be reused. Collect it in a clean beaker.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the wiring bracket mounting bolt (A)
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

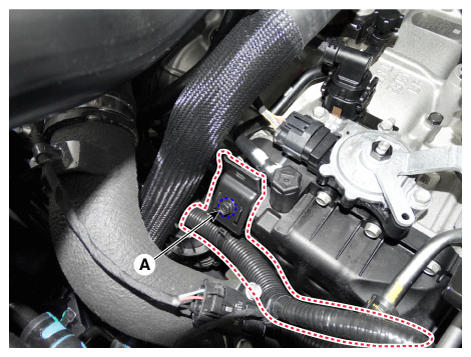

Fig 2: Removing Wiring Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the air breather hose (A) from the valve body cover.

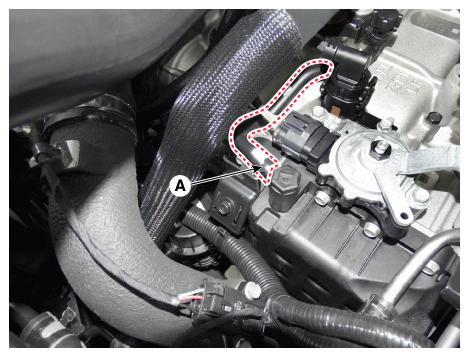

Fig 3: Disconnecting Air Breather Hose From Valve Body Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body cover (A).
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

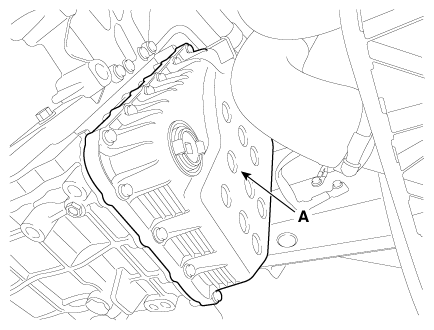

Fig 4: Removing Valve Body Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the solenoid valve harness (A) and oil temperature sensor (B) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

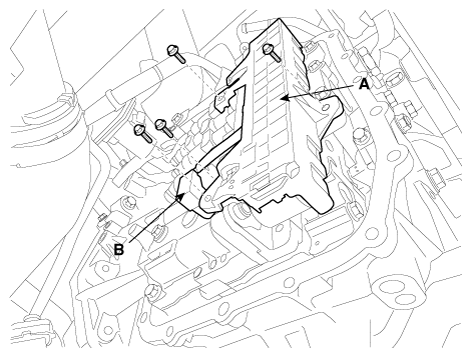

Fig 5: Removing Solenoid Valve Harness And Oil Temperature Sensor Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove solenoid valve support bracket (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

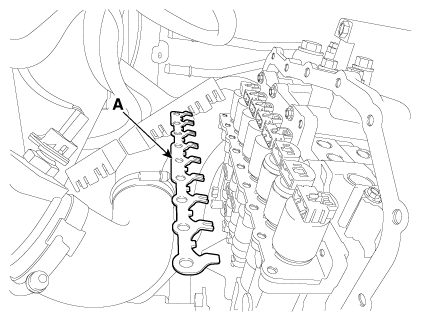

Fig 6: Removing Solenoid Valve Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the line pressure control solenoid valve (A).

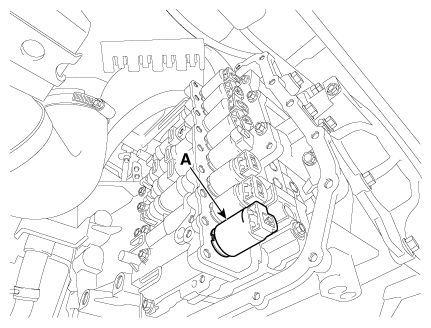

Fig 7: Removing Line Pressure Control Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
