Driver/Passenger Power Window Switch

CAUTION:

Be careful not to scratch the door trim and other parts.
Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Loosen the power window switch assembly mounting screws.
Remove the power window switch assembly (A) after disengaging the mounting clips.

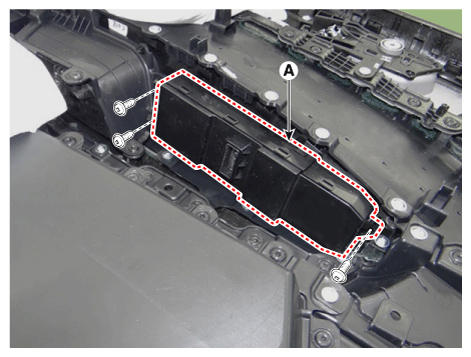

Fig 1: Locating Power Window Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

Information
- Replace any damaged clips.

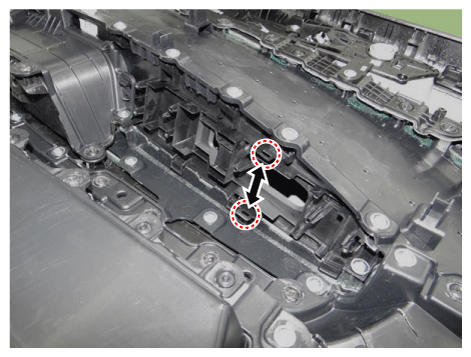

Fig 2: Checking Power Window Switch Assembly Mounting Clips
Courtesy of KIA MOTORS AMERICA, INC.
