Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

  3. Loosen the power window switch assembly mounting screws.
  4. Remove the power window switch assembly (A) after disengaging the mounting clips.

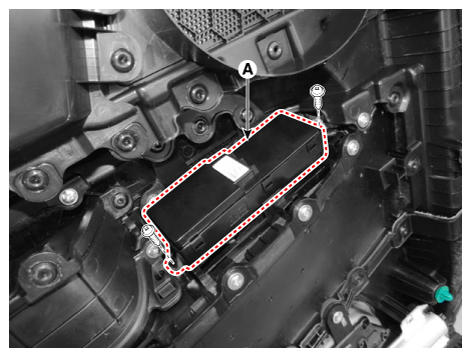

    Fig 1: Locating Power Window Switch Assembly With Mounting Clips
    G12144655Courtesy of KIA MOTORS AMERICA, INC.

    Information

    • Replace any damaged clips.

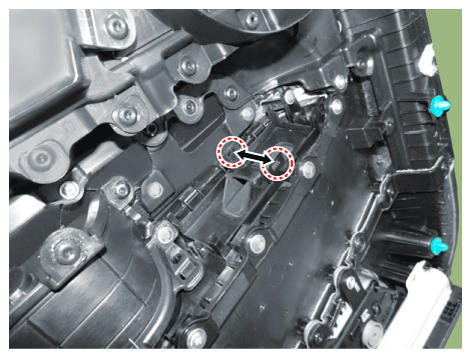

    Fig 2: Checking Power Window Switch Assembly Mounting Clips
    G12144656Courtesy of KIA MOTORS AMERICA, INC.
